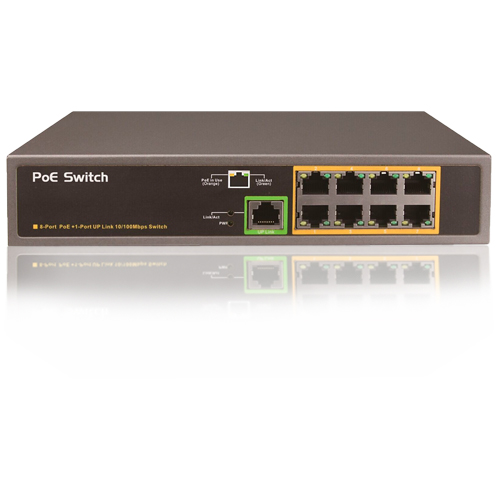

  • PoE-S8M-1MUPL-65W
PoE-S8M-1MUPL-65W

PoE-S8M-1MUPL-65W

  • Product description: 8-Ports PoE 10/100Mbps + 1-Port 10/100Mbps Up-link
  • INQUIRY


Product Details:

Model Number:

PoE-S8M-1MUPL-65W

Ports:

8 FE Ports +1 FE Up-link

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

3 Years

Key Features
- Compliant with IEEE 802.3at standard
- Supports Power over Ethernet on 8 ports of 10/100Mbps
- Provides 65Watts (max) Power
- Supports Auto-MDI/MDI-X
- Support Non-Blocking Data Forward
- Supports Auto-Negotiation and feature of store-and-forward

- LED indicators for PoE activity
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet
- Compact Design Fits Easily in WLAN Access
- Plug-and-Play no configuration required
- Internal power supply
- Easy installation and maintenance

Technical Specification:

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE Power Output: Per Port 54V DC, 1.2A, POE port: 30 Watt

Power Consumption: 65 Watts(Max)

PoE Power Budget: 60 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 1.8Gps; Throughput: 1.34Mpps

MAC Address Table: 2K; Memory Buffer: 768K

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

LED Indicators

Per Port: PoE in use(Orange), Power: Green,

10/100M Link/Act(Green)

Network Interface

8x 10/100Mbps RJ-45; (PoE 1~8 ports), 1 x10/100Mbps RJ-45 Uplink port

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Dimensions/weight

360x 200x 60mm / 1.5KG

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
