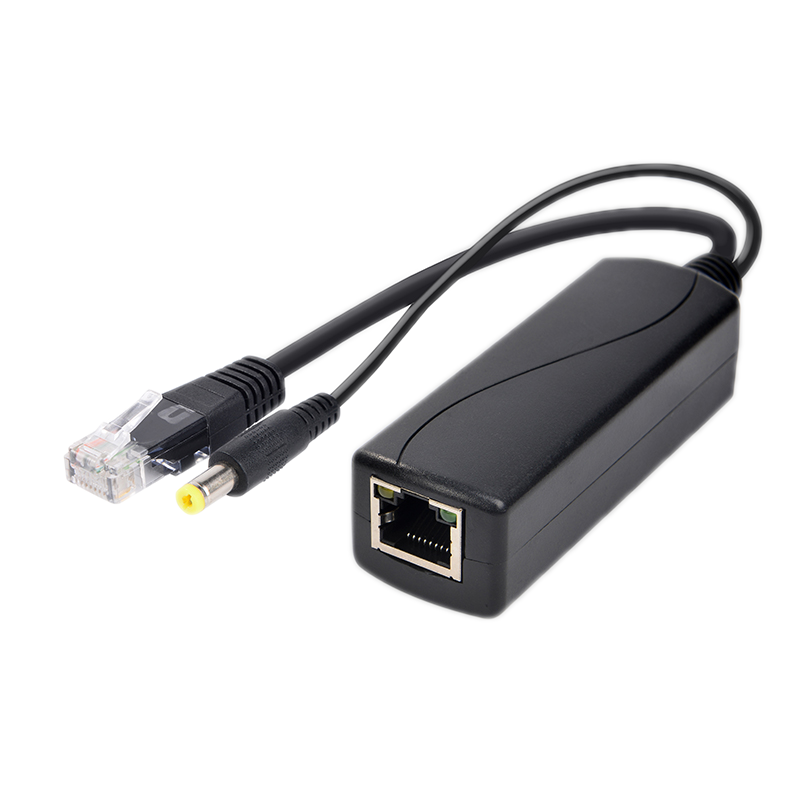

PoE Splitter

PSM-af121(PoE Splitter IEEE802.3af 12V/1A 10/100M)

Product description: PSM-af121 PoE Splitter IEEE802.3af 12V/1A 10/100M
INQUIRY

Product Details:

Model Number:	PSM-af121	Ports:	/
Min. Order Qty:	1 PCS	Trade Term	EX WORKS, FOB, CIF
Products Status:	Make-to-Order/Stock	Delivery Time:	1-30 days
Certification:	CE, FCC, ROHS	Warranty	1 year

Key Features:

-Network devices at FAST speeds all within a compact device
-Automatically detects PoE terminals and supplies inline power
-Easily install non-PoE devices where a power outlet is not available
-Reduce installation and network equipment costs
-Safeguards network device with short circuit protection
-Converts Non-PoE devices with Power Over Ethernet Support
-Auto-sensing power drawn from 802.3af power source equipment (PSE) devices

-Supplies power up to 15.4 watts
-Provides Interchangeable tips

Technical Specification:

Standards	IEEE 802.3af
Interface	1Power Input 1Power Output 1*Data Output Port: RJ45 Data Transfer Rate: 10/100Mbps
Power Input	37-57VDC
Power Output	12V/1A
LED Indicators	PoE (Orange)
Power Pin	support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Isolation	Support
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
