PoE Injector-Active

PJ802G（1000Mbps, 30W ）

Product description: Standard Single-Port PoE Injector PJ802G IEEE802.3at 30W 1000Mbps
INQUIRY

Product Details:

Key Features:

-IEEE 802.3at compliant with 2-event classification

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of non–standard ethernet terminals

-Compact design fits easily in WLAN access

-Supports 10/100/1000Base-T applications

-Plug-and-Play no configuration required

-Internal power supply

-Easy installation and maintenance

-Casing: plastic

Technical Specification:

Standards	IEEE 802.3 10-BASE-T IEEE 802.3u 100-BASE-TX IEEE 802.3ab 1000-BASE-T (Fast Ethernet) IEEE 802.3af IEEE 802.3at

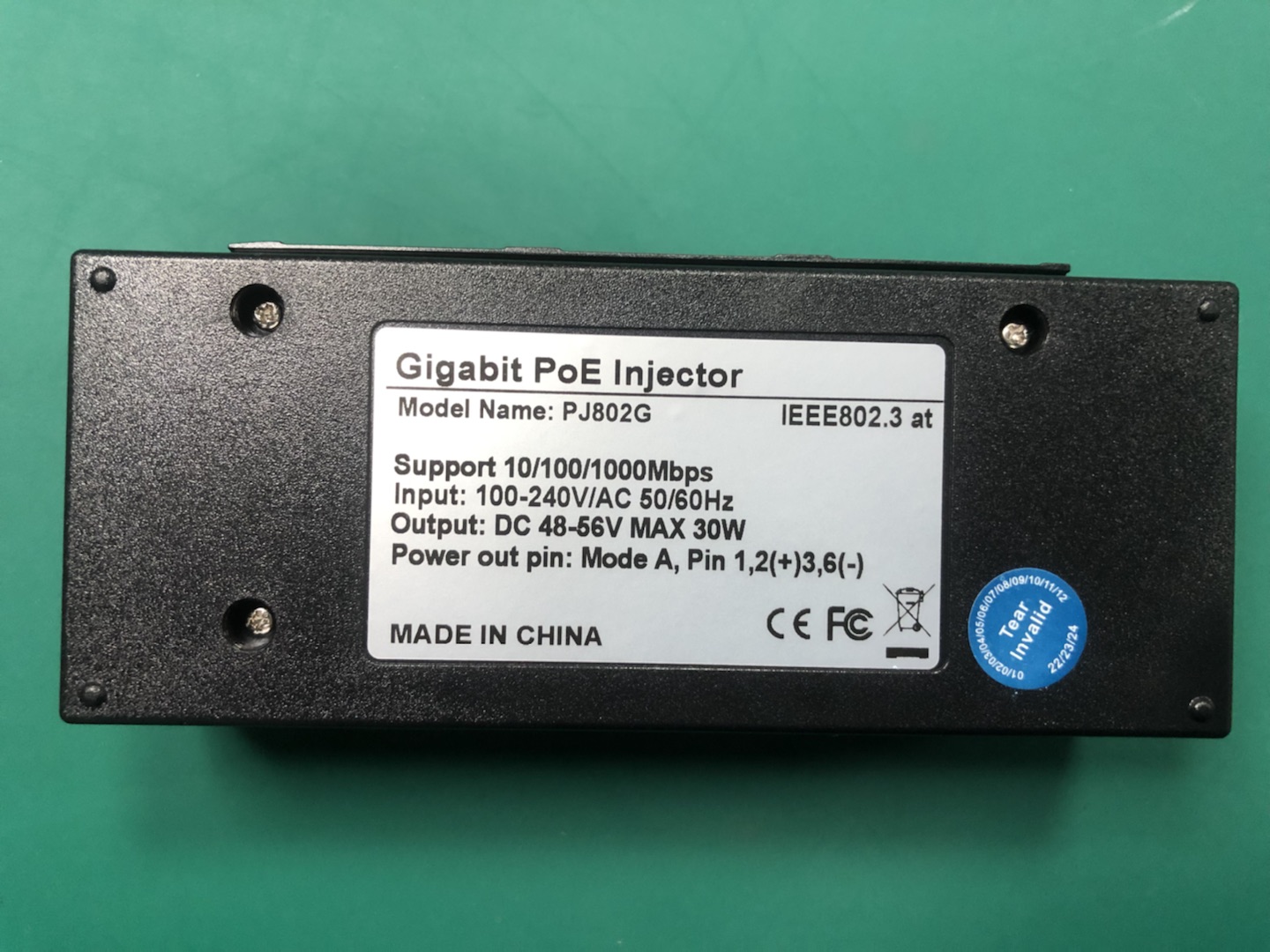

PoE Performance	Power Input: 100~240V/AC, 50~60 Hz, PoE Power Output: 48~56V/30W Power Pin Assignment: 1/2(+)3/6(-), Mode-A, End-Span
Transmission Media	10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)
LED Indicators	Power/PoE Status
Network Interface	1PoE Port at 10/100/1000Mbps 1Uplink Port at 10/100/1000Mbps
Dimension/weight	55125210mm/ 400g 40pcs/carton, carton size: 580435277 16kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
