PoEX-2(1-1M)30W (IEEE802.3 at 30W 10/100M)

Product Overview

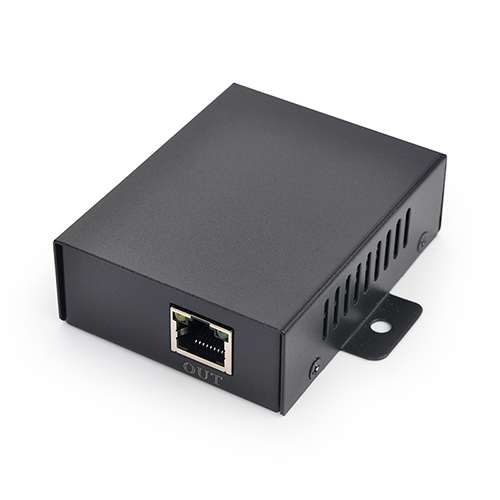

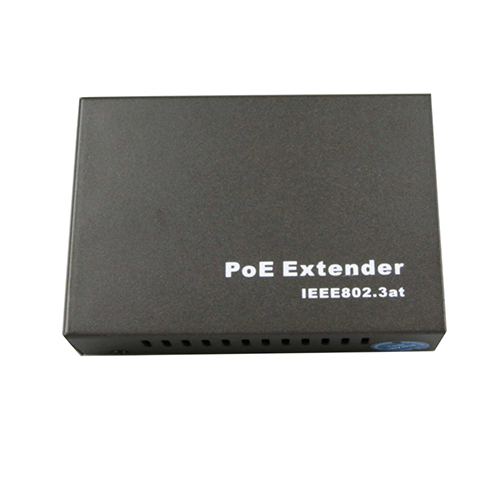

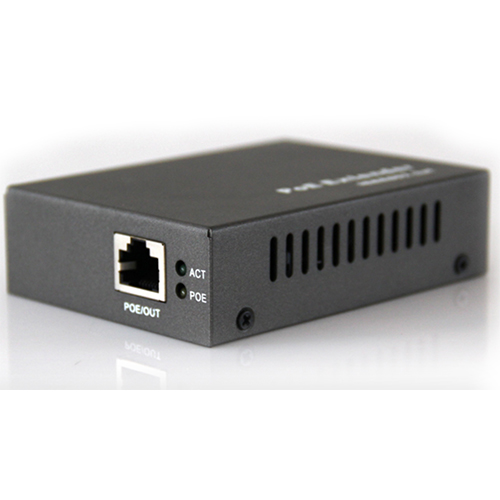

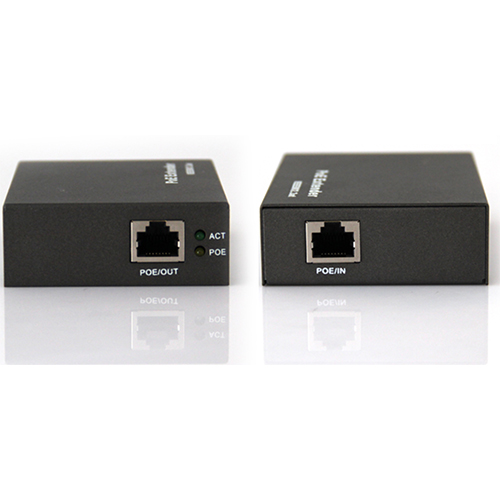

PoE Extender is a cost-effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards. The PoE Extender supports 10/100/1000Mbps data rates and delivers 802.3at power levels, up to 25.5W. The PoE Extender does not require local power and is powered via the PoE input.

Features

Extended PoE installation range by additional 100m

Extenders can be cascaded to reach up to 400m

Supports 10/100Mbps data rates

Provides 802.3af power levels when powered by any 802.3at

Provides 802.3at power levels when powered by PoE Injector or PoE Switch with 802.3at

Cost effective installation - no need for local power

Plug and play installation - no configuration needed

Technical Specification
