PoE Switch-Managed

  • PoE-S4M-1M-M(4ports 100Mbps PoE+1port 100Mbps Uplink)

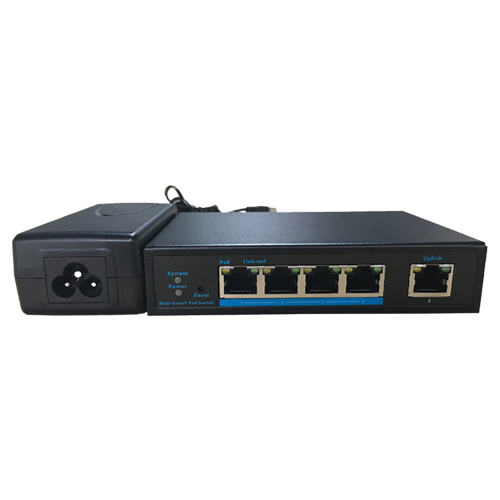

PoE-S4M-1M-M(4ports 100Mbps PoE+1port 100Mbps Uplink)

PoE-S4M-1M-M(4ports 100Mbps PoE+1port 100Mbps Uplink)

  • Product description: Managed PoE Switch IEEE802.3af/at 4-Ports PoE 10/100/Mbps 1-Port 10/100/1000Mbps Up-link Total PoE power:65W
  • INQUIRY

The PoE-S4M-1M-M, a Web-smart Fast PoE Switch is designed for video surveillance, wireless coverage and other industries designed Ethernet data transmission and power supply equipment for digital video, wireless AP, attendance equipment, Internet telephony and other equipment access Into the LAN to provide power and high quality network connection, support for POE (network cable simultaneously transmit data + power) power supply, eliminating the need to arrange the AC power cord, save material, plug and play, construction more convenient. web page can display and configure the working status of the port.

The PoE-S4M-1M-M provides 4ports RJ-45 10/100M PoE +1port 10/100M RJ-45 Uplink

Features

•   Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at

•   High back-plane bandwidth 1Gbps

•   IEEE802.3x Flow control

•   Web page management

Specifications

Ports

4* 10/100 +1* 10/100 Uplink

LED Indicators

Power, PoE, Link/Act LED.

Input voltage

100V240V AC50/60Hz (for power adapter)

48~52VDC (for PoE switch)

Power consumption

65W (62W for PoE)

Operating temperature

-1045.

Storage temperature

-1070.

Relative humidity

10%90% (non-condensing).

Thermal methods

Fanless.

Switching capacity

1G.

MAC address table

2K.

Traffic control

IEEE 802.3x full-duplex flow control.

PoE

PoE port

4* 10/100Base-TX ports.

PoE Standard

IEE802.3af, IEEE802.3at, per port 30W(MAX)

Pin assignment

V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Soft Web

Port Management

Port Configuration: Provides the configuration for duplex, speed, Tx/Rx ability control, MAC address learning.

Flow Control

Port Mirroring: Allows to the user to set port mirroring

Bandwidth Control:  0~3124 x 32kbps

Broadcast Storm: Provides broadcast storm control on per port basis, including multicast storm control.

VLAN

VLAN Mode: Port based and tag-based selection.

Tag: Remove/add tag for tag based VLAN

QoS Setting

Priority Classification   Priority Rule selections

Queue Scheduling Mode   Four Queues, Strict or Weight-Round-Robin

Port Based Priority

TCP/UDP Priority

VLAN Tag Priority

TOS/DSCP Priority

Security Filter

MACID Filter

Firewall Rules specified by Active Control Lists

Management Protocol

SNMP, Telnet

PoE Control

ON/OFF Current and voltage display, current control

time management

Auto ping

Configuration File Download/Upload

Support Download/Upload configuration File via WEB.

Upgrade Firmware

Support Upgrade Firmware via WEB.
