PoE Switch-Managed

PoE-S8M-1G-1SFP-M(8ports 100Mbps PoE+1port 1000Mbps Uplink+1port SPF)

Product description: Managed PoE Switch IEEE802.3af/at 8-Ports PoE 10/100Mbps 1-Port 10/100/1000Mbps Up-link 1-port SPF Total PoE power:125W
INQUIRY

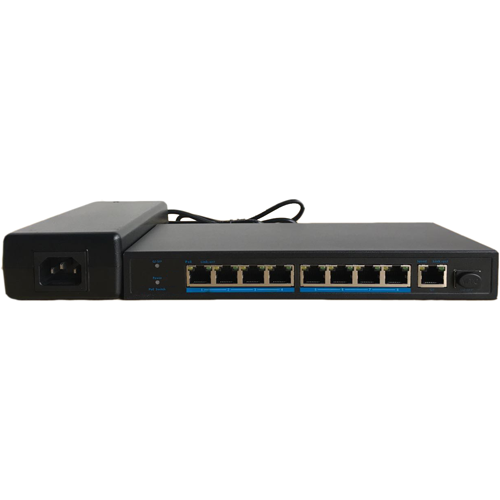

The PoE-S8M-1G-1SFP-M provides 8* 10/100M PoE ports+1* Gigabit uplink+1*Gigabit SFP.

The PoE-S8M-1G-1SFP-M, a web-smart Fast PoE Switch is designed for video surveillance, wireless coverage and other industries designed Ethernet data transmission and power supply equipment for digital video, wireless AP, attendance equipment, Internet telephony and other equipment access Into the LAN to provide power and high quality network connection, support for POE (network cable simultaneously transmit data + power) power supply, eliminating the need to arrange the AC power cord, save material, plug and play, construction more convenient. Web page can display and configure the working status of the port.

Features

• Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at

• Provides 8 *10/100Base-TX ports+1 Gigabit uplink+1Gigabit SFP.

• Provides 8 PoE injector

• High back-plane bandwidth 5.6Gbps

• IEEE802.3x Flow control

• Web page management

Specifications

Ports	8* 10/100Base-TX ports+1Gigabit RJ-45+1Gigabit SFP
LED Indicators	Power, PoE, Link/Act LED.
Input voltage	100V～240V AC，50/60Hz (for power adapter) 48~52VDC (for PoE switch)
Power consumption	125W
Operating temperature	-10℃～45℃.
Storage temperature	-10℃～70℃.
Relative humidity	10%～90% (non-condensing).
Thermal methods	Fanless.
Switching capacity	5.6G.
MAC address table	4K.
Traffic control	IEEE 802.3x full-duplex flow control.
PoE
PoE port	8*10/100Base-TX ports.
PoE Standard	IEE802.3af, IEEE802.3at, per port 30W(MAX)
Pin assignment	V- (RJ45 Pin 1, 2), V+ (RJ45 Pin 3, 6).
Soft Web
Port Management	Port Configuration: Provides the configuration for duplex, speed, Tx/Rx ability control, MAC address learning.
	Flow Control
	Port Mirroring: Allows to the user to set port mirroring
	Bandwidth Control: 0~3124 x 32kbps
	Broadcast Storm: Provides broadcast storm control on per port basis, including multicast storm control.
VLAN	VLAN Mode: Port based and tag-based selection.
VLAN	Tag: Remove/add tag for tag based VLAN
QoS Setting	Priority Classification Priority Rule selections
	Queue Scheduling Mode Four Queues, Strict or Weight-Round-Robin
	Port Based Priority
	TCP/UDP Priority
	VLAN Tag Priority
	TOS/DSCP Priority
Security Filter	MACID Filter
Security Filter	Firewall Rules specified by Active Control Lists
Management Protocol	SNMP, Telnet
PoE Control	ON/OFF Current and voltage display, current control
	time management
	Auto ping
Configuration File Download/Upload	Support Download/Upload configuration File via WEB.
Upgrade Firmware	Support Upgrade Firmware via WEB.
