PoE-8(6M-2MBT)-WF(1~6 port af/at x 10/100Mbps; 7~8 bt port x 10/100Mbps)

Product Details:

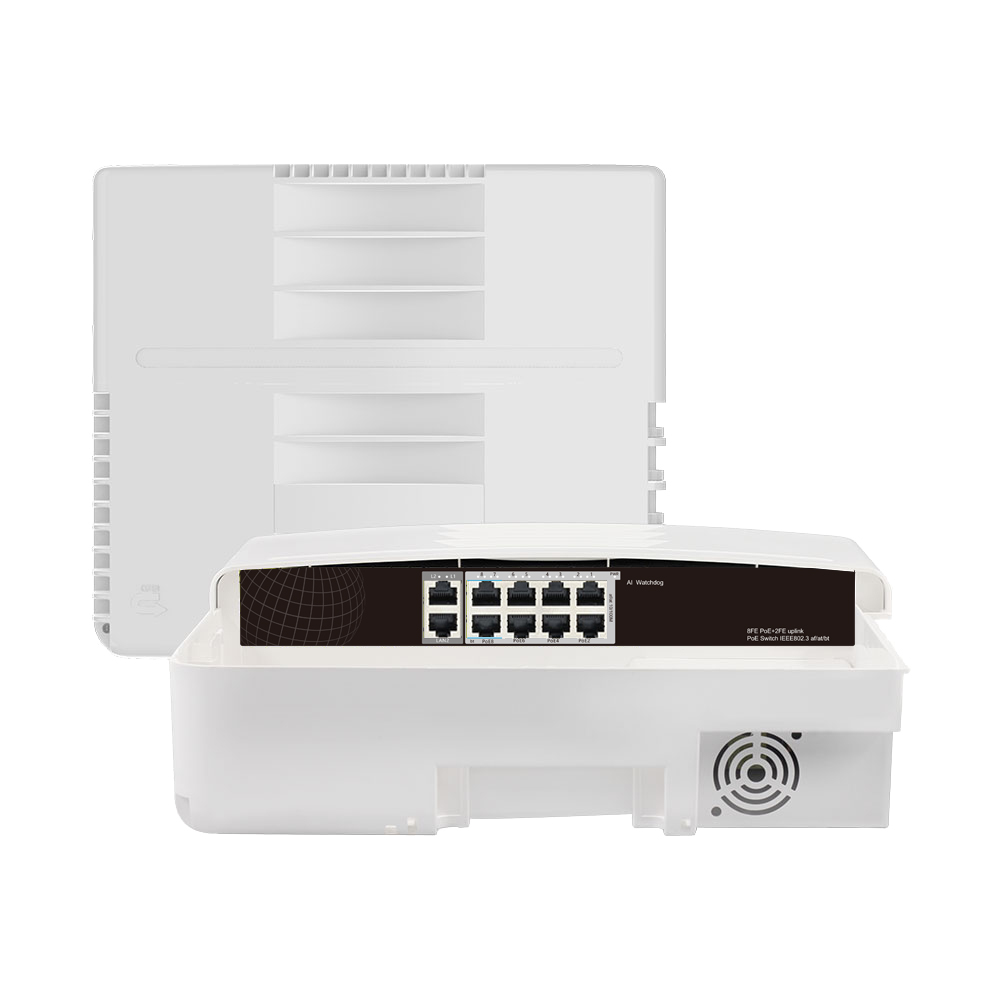

Indoor Model: PoE-8(6M-2MBT)                Outdoor  Model: PoE-8(6M-2MBT)-WF

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-PoE power light blinks to determine the power status of the receiving end, and each blink is 2.7 watts.

-PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart

-Upload port automatic flip (Auto MDI / MDIX)

-6KV lightning protection, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, short circuit protection

-The Max output power of the port is 60W, which is convenient for hi-power equipment

-Zero configuration feature power supply is automatically supplied to the adaptive equipment

WATCHDOG

Auto-detect and restart IP camera timely if the camera is halted

6KV LIGHTNING 8KV ESD

Reaching 6KV lightning and 8KV Static electricity protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

SUPPLY 60W HIGH POWER

60W high-power port to meet the needs of more and more high-power powered devices

EASY TO USE

The plug and play with no configuration make the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use

PLS contact our sales team poe@szpcgl.com for the detailed specification
