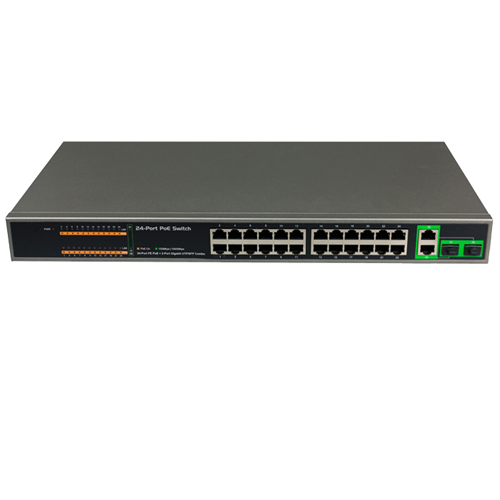

PoE Switch Unmanaged Fast Ethernet

PoE-S24M-2G-2SFPCombo(250W)

Product description: IEEE802.3af/at 24-Ports PoE 10/100Mbps 2-Ports GE TP/SPF Combo Total PoE power: 250W
INQUIRY

Product Details:

Model Number:	PoE-S24M-2G2SFP Combo(250W)	Min. Order Qty:	1 PCS
Products Status:	Make-to-Order /Stock	Warranty	2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE over current protection; PoE circuit sorting protection PoE power output: Per Port 54V, PoE single port: 30 Watt MAX Power consumption: 250 Watts (Max) PoE power budget: 220 Watts PoE power supply type:1/2(+)3/6(-), Mode-A, End-Span PoE port priority: support Storage and forward: support Switch capacity: 8.8Gbps; Throughput: 6.4Mpps MAC Address Table: 8K; Memory Buffer: 4.1M
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
LED Indicators	PoE In-Use (orange);10/100Mbps Link/ ACT(green) POE MAX(green) Power (green)
Network Interface	24x 10/100Mbps RJ-45; (PoE 1~16 ports), Auto-MDI/MDI-X ports 2x 10/100/1000Mbps RJ-45 uplink 2 x1000Base-SX/LX SFP Combo
Power Input	100~240V/AC, 50~60 Hz, Internal Power Supply
Packing dimension/weight	530290100mm/ 3.5kg 4pcs/carton; carton size: 545320425/15kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
