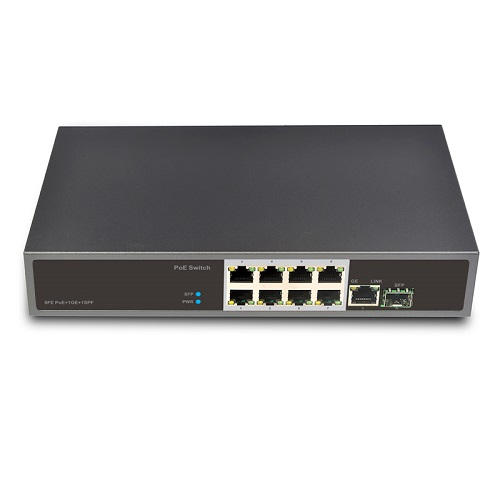

PoE-S8M-1G-1SFP(150W)(8ports 100Mbps PoE+1port GE uplink+1 SFP )

Standards

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE802.1q VLAN Network bridge operation

IEEE 802.3af/at Power over Ethernet cable pairs or device

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity

PoE over current protection PoE short circuit protection

PoE power output: Per Port 54V DC, Max. 30 watts/port

Power Pin Assignment: 1/2(+)3/6(-), Mode-A, End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 5.6Gbps; Throughput: 1.34Mpps

MAC Address Table: 2K; Memory Buffer: 768k

Transmission Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

LED Indicators

Per Port: Link/Act, PoE Act/Status

Per Unit: Power

Network Interface

8x10/100Mbps RJ-45 (PoE 1~8 Ports) Auto-MDI/MDI-X ports

1x/100/1000Mbps RJ-45 Uplink

1x/100/1000Mbps SFP

Power Input

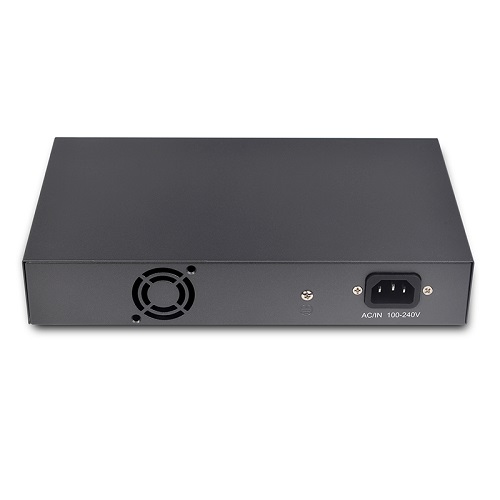

Input: 100~240V/AC, 50~60 Hz, Internal Power Supply

Power Consumption

150 Watts (Max)

Packing dimension/weight

50*150*44mm / 1500g

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
