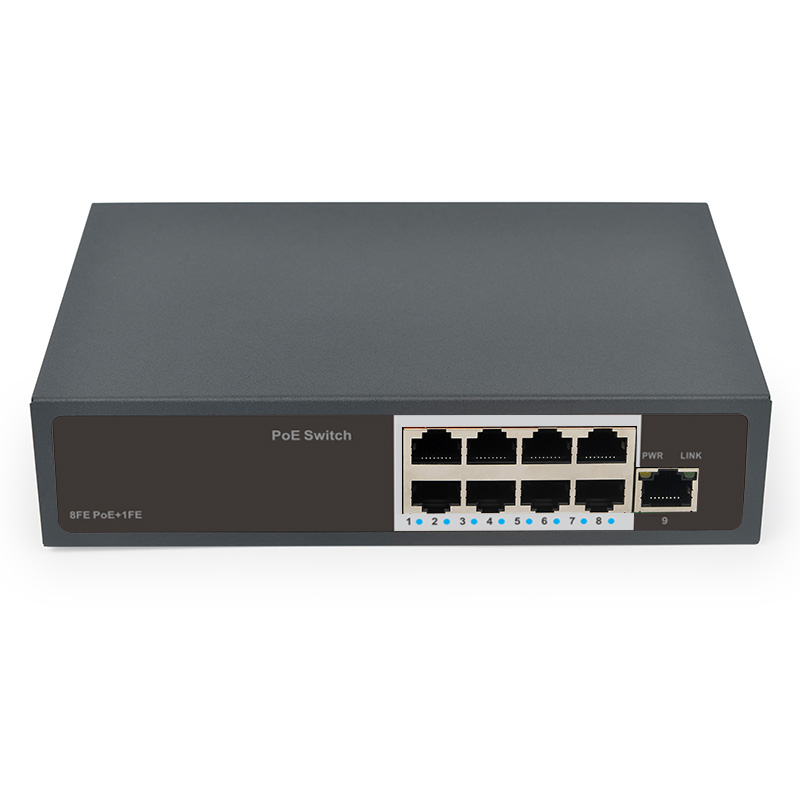

PoE Switch Unmanaged Fast Ethernet

PoE-S8M-1M (104W)(8ports 100Mbps PoE+1port 100Mbps Uplink)

Product description: IEEE802.3af/at 8-Ports PoE 10/100Mbps 1-Port 10/100Mbps Up-link Auto extend:1-8 Port 10Mbps 250meter Total PoE power: 104W
INQUIRY

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Auto extend:1-8 Port 10Mbps 250meter

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X

-Support Non-Blocking data forward

-Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.1q VLAN Network bridge operation IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE short circuit protection PoE power output: Per Port 54V DC, Max. 30 watts/port Power Pin Assignment: 1/2(+)3/6(-), Mode-A, End-Span PoE port priority: support Storage and forward: support Switch Capacity: 2Gbps; Throughput: 1.34Mpps MAC Address Table: 2K; Memory Buffer: 768k
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
LED Indicators	Per Port: Link/Act, PoE Act/Status Per Unit: Power
Network Interface	8x10/100Mbps RJ-45 (PoE 1~8 Ports) Auto-MDI/MDI-X ports 1x10/100Mbps RJ-45 Uplink
Power Input	Input: 100~240V/AC, 50~60 Hz, Internal Power Supply
Power Consumption	104 Watts (Max)
Normal Mode	100M;10/100Mbps;
Extend Mode	switch extend ,1-8Port ; 5E cat Cable Distance 250M;Data Rate 10Mbps
Packing dimension/weight	18512344mm / 1100g
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
