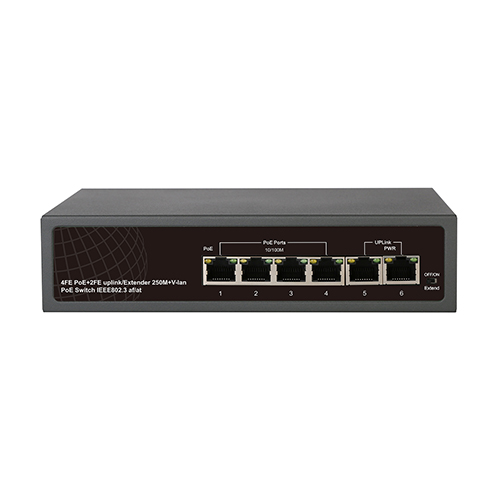

PoE Switch Unmanaged Fast Ethernet

PoE-S4M-2M-EX(65W)(4ports 100Mbps PoE+2 ports 100Mbps Uplink)

Product description: IEEE802.3af/at 4-Ports PoE 10/100Mbps 2-Ports 10/100Mbps Up-link Extend 250m Switch Extend 1-4Port V-Lan on; Total PoE power:65W
INQUIRY

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Switch Extend, 1-4 Port V-Lan on; 5E cat Cable Distance 250M; Data Rate change to be :10Mbps

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X

-Support Non-Blocking data forward

-Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.1q VLAN Network bridge operation IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE short circuit protection PoE power output: Per Port 52V DC, Max. 30 watts/port Power Pin Assignment: 1/2(+), 3/6(-) Mode-A, End-Span PoE port priority: support Storage and forward: support Switch Capacity: 1.8Gbps; Throughput: 0.1448Mpps MAC Address Table: 1K; Memory Buffer: 64k
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
LED Indicators	Per Port: Link/Act, PoE Act/Status Per Unit: Power
Network Interface	4 x 10/100Mbps RJ-45 (PoE 1~4 Ports) Auto-MDI/MDI-X ports 2 x 10/100Mbps RJ-45 Uplink
Power Input	Input: 100~240V/AC, 50~60 Hz, 1A Internal Power Supply
Power Consumption	65Watts (Max)
Normal Mode	100M;10/100Mbps;
Extend Mode	1-4 Port V-Lan on, extend 250M; Data Rate change to be :10Mbps
Mode switch	V-Lan
Packing dimension/weight	242x245x62mm/ 0.9kg 10pcs/carton; carton size: 500335263/ 9.2kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
