PoE Switch-Industrial

S5M-ID unmanaged Industrial Ethernet switch

Product description: Unmanaged industrial ethernet switch 5-ports RJ-45 10/100M -40 ~ 70℃ wide temperature and harsh work support
INQUIRY

Description

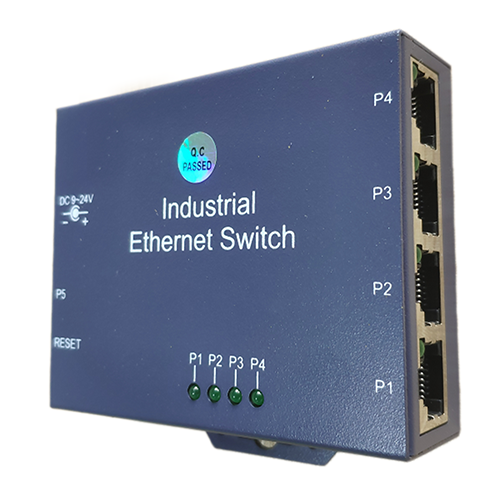

S5M-ID is an unmanaged Industrial Ethernet switch with 5*100M ports, it supports IEEE 802.3 / 802.3u / 802.3x and 10 / 100M, full duplex, MDI / MDI-X automatic detection, S5M-ID supports -40 to 70°C operation temperature, and can be easily installed in small spaces such as control boxes. One-piece wall-mounted installation, wide temperature, and IP30 enclosure with dual LED (RJ-45 integration, chassis surface) indicator lights make the S5M-ID switch reliable and easy to use.

Feature

-IEEE 802.3 10BASE-T/ IEEE 802.3u 100BASE-TX Ethernet standard

-Support 5x10/100Mbps RJ-45 port

-9~24 VDC wide range power input

-40 ~ 70℃ wide temperature and harsh work support

Specification

Port	5x 10/100Mbps
LED	Power（Orange）, Link/Act （Green, double lights（P1~P4））
power input	9~24VDC (5.5/2.1DC)
Working temperature	-40 ℃ ~ 70 ℃
Storage environment	-40℃～75℃.
Working humidity	10%～90% (No condensation).
Cooling method	Natural cooling
Backplane bandwidth	1.0G.
MAC Address table	2K.
flow control	IEEE 802.3x full-duplex flow control.
Optional accessories	External 12V 1A power adapter
