PoE Switch-Industrial

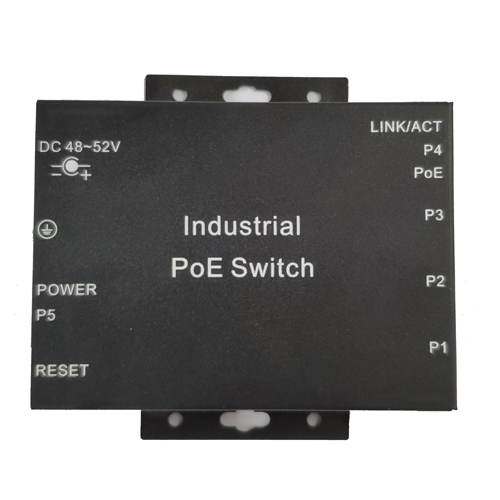

PoE-S4M-1M-ID(4ports 100Mbps PoE+1port 100Mbps Uplink)

Product description: Unmanaged Industrial PoE Switch IEEE802.3af/at 4-Ports PoE 10/100/Mbps 1-Port 10/100Mbps Up-link Total PoE power:65W -40 ℃ ~ 70 ℃ (T models)
INQUIRY

DESCRIPTION

PoE-S4M-1M-ID PoE Switch is 5*100Mbps Dumb Ethernet switches, its first 1-4 support PoE (Power-over-Ethernet) Ethernet power supply function; it is classified as power source equipment (PSE), when they are used to supply electricity, in addition to centrally manage the power supply, and each port can provide up to 30 W of power. It can be used for the IEEE 802.3af / at-compliant power device (PD) to provide power, eliminating extra wiring requirements.

It supports IEEE 802.3 / 802.3u / 802.3x and 10 / 100M, full / duplex, MDI / MDI-X auto-detection, providing 1-100Mbps RJ-45uplink ports for the whole bandwidth to provide economic super for your industrial Ethernet solution values.

Features

-IEEE 802.3 10BASE-T/ IEEE 802.3u 100BASE-TX compatible

-4 - IEEE 802.3af / at- compliant PoE + and Ethernet ports integrated support

-5-100Mbps TX

-Each PoE port can provide up to 30W of power

-48~52 VDC power input

-Intelligent power consumption detection and classification capabilities

-40 ~ 70℃ operating temperature range

Specification

PoE-S4M-1M-ID
Port	5* 100Mbps RJ-45
LED Lights	Power, PoE, Link/Act LED
Input	48~52VVDC (for PoE switch)
POE output total power	65W (60W for PoE)
Operating temperature	-40 ℃ ~ 70 ℃ (T models)
storage temperature	-40℃～75℃.
Working humidity	10%～90% (non-condensing).
Cooling	Metal cooling
bandwidth	1.0G.
MAC address table	2K.
Flow Control	IEEE 802.3x full-duplex flow control.
PoE
PoE port	4 *10/100Base-TX ports.
PoE standard	IEE802.3af, IEEE802.3at, per port 30W(MAX) Total power 60W
PoE power supply pin	V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2).
Certification	CE/FCC/ROHS
Packing/Weight	1559032mm/0.35kg/PCS; 40pcs/carton; carton size: 350320210/15kg
