PoE Switch-Industrial

  • PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)
  • PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)
  • PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)
PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)

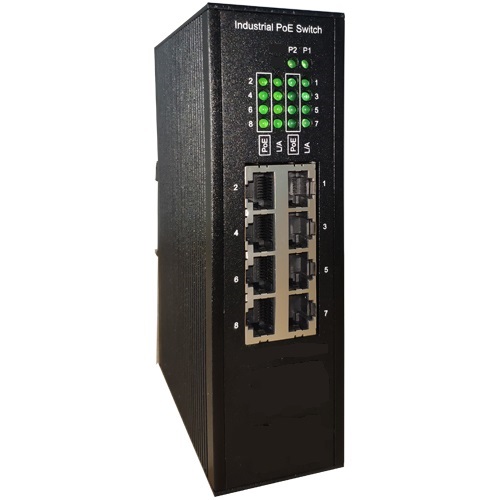

PoE-S8G-ID (Industrial PoE 8ports 1000Mbps PoE)

  • Product description: Unmanaged Industrial PoE Switch IEEE802.3af/at 8-Ports PoE 10/100/1000Mbps Total PoE power: 150W -40 ℃ ~ 70 ℃ (T models)
  • INQUIRY

DESCRIPTION

PoE-S8G-ID is an industrial grade Gigabit 802.3at PoE+ switch that provides Power over Ethernet functionality and non-blocking wire-speed gigabit performance in harsh industrial environments. It offers eight ports 10/100 / 1000Base-T RJ-45 and 802.3af / at PoE in an IP30 rugged enclosure with redundant power system. The PoE-S8G-ID is ideal for deploying surveillance systems and ensuring control and wireless service in climate-critical environments over a wide temperature range of -40 to 70 degrees Celsius. It is the preferred solution for your industrial Ethernet solution.

For high-power PoE applications for security and public service applications, the PoE-S8G-ID provides 8*10/100/1000Mbps ports, including IEEE 802.3af/at, to meet the high-power PoE requirements for network applications at gigabit-rate transmission over wide temperature. The 802.3at Power over Ethernet (PoE +) combination delivers 30 watts of power output and per-port data over a single Cat. 5E / 6 Ethernet cable. The PoE-S8G-ID has a full 150W PoE budget across the system and is designed to meet the growing demand for high-power network PDs (active devices) such as PTZ (Pan, Tilt and Zoom).

Features

-IEEE802.3-10BASE-T/IEEE,802.3u-100BASE-TX,802.3ab-1000BASE-TX /IEEE Ethernet standard

-IEEE 802.3af&at standard PoE power supply standard

-8-100/1000Mbps TX

-40 ~ 70 °C Wide temperature and strict work support

-Small size for easy installation

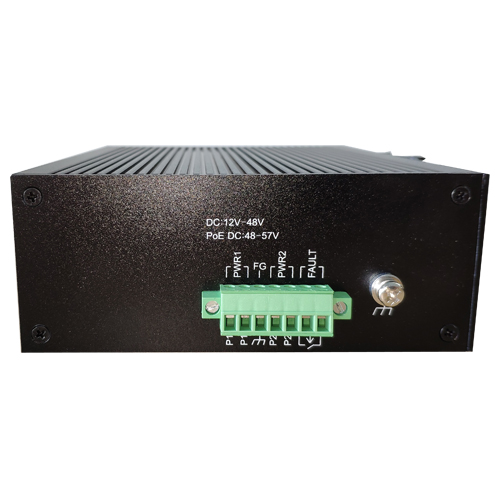

-DC48~52V dual power input

Specifications:

Port

8x10/100/1000Mbps RJ-45 PoE;

IEEE802.3af&at Total power: 150W

LED

Power, Link/Act PoE

Power input

48~52VDC (PoE Switch)

Power consumption

10W(without PoE load)

Working temperature

-40 ~ 70

Storage environment

-4075.

Working humidity

10%90% (No condensation).

Heat dissipation method

Natural cooling

Backplane bandwidth

16G.

MAC Address table

8K.

flow control

IEEE 802.3x full-duplex flow control.

Installation method

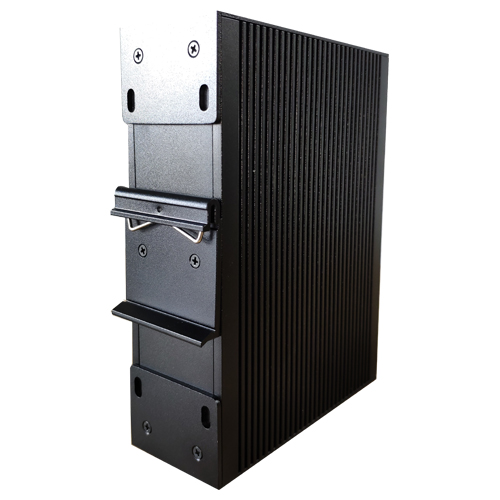

DIN rail and wall mount design

Data transmission

100Meter
