PoE Switch Unmanaged Gigabit

  • PoE-S4G-1G-1SFP(65W)(4ports 1000Mbps PoE+1port 1000Mbps Uplink+1ports SFP)

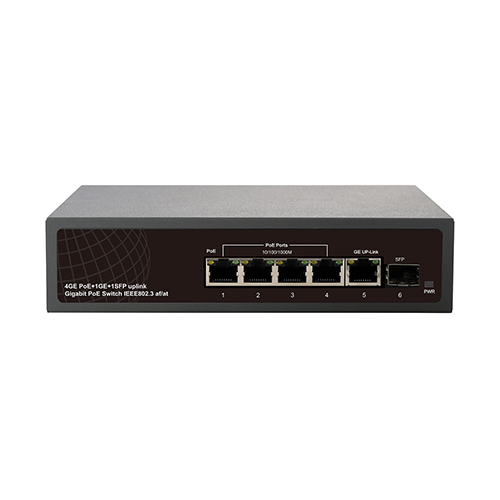

PoE-S4G-1G-1SFP(65W)(4ports 1000Mbps PoE+1port 1000Mbps Uplink+1ports SFP)

PoE-S4G-1G-1SFP(65W)(4ports 1000Mbps PoE+1port 1000Mbps Uplink+1ports SFP)

  • Product description: IEEE802.3af/at 4-Ports PoE 10/100/1000Mbps 1-Port 10/100/1000Mbps Up-link 1-Port 10/100/1000Mbps SFP Total PoE power:65W
  • INQUIRY

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X

-Support Non-Blocking data forward

-Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply;

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX (Fast Ethernet)

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3af/at Power over Ethernet cable pairs or device

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE power output: Per Port 52V DC, Max. 30 watts

Power Pin Assignment:1/2(+)3/6(-), Mode-A, End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 12Gbps; Throughput: 7.44Mpps

MAC Address Table: 2K; Memory Buffer: 2M

Transmission Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

LED Indicators

Per Port: Link/Act, PoE Act/Status

Per Unit: Power

Network Interface

4x10/100/1000Mbps RJ-45 (PoE 1~4 Ports) Auto-MDI/MDI-X

1x10/100/1000Mbps RJ-45 Uplink

1x1000Base-SX/LX SFP

Power Input

Input: 100~240V/AC, 50~60 Hz, Internal Power Supply

Power Consumption

65 Watts (Max)

Packing dimension /weight

242*245*62mm/ 0.95kg     10pcs/carton; carton size: 500*335*263/11kg

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
