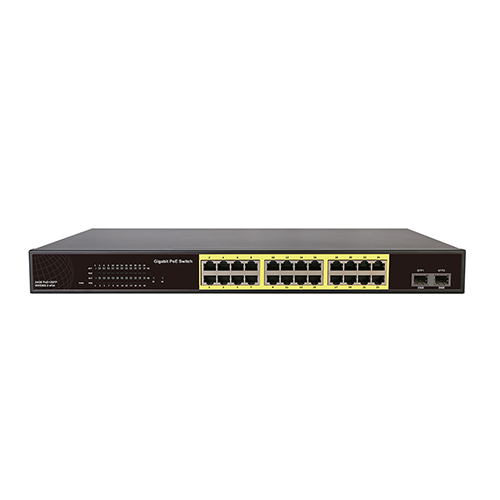

PoE-S24G-2SFP(370W)(24ports 1000Mbps PoE+2ports SPF)

Standards

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX (Fast Ethernet)

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3af/at Power over Ethernet cable pairs or device

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity

PoE over current protection PoE short circuit protection

PoE Power Output: Per Port 52V DC, Max. 30 watts/port

Power Pin Assignment: 1/2(+)3/6(-), Mode-A, End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 52Gbps; Throughput: 38.688Mpps

MAC Address Table: 8K; Memory Buffer: 4.1M

Transmission Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

LED Indicators

System: Power, PoE In-Use (yellow)

10/100M LINK/ ACT (green), 1000M LINK (yellow)

Network Interface

24x 10/100/1000Mbps RJ-45 (PoE 1~16 Ports) Auto-MDI/MDI-X ports

2x10/100/1000Mbps Base-SX/LX SFP

Power Input

Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply

Power Consumption

370 Watts (Max)

Packing dimension/weight

530*300*100mm / 3.9kg 3pcs/carton; carton size: 550*320*320/12.45kg

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
