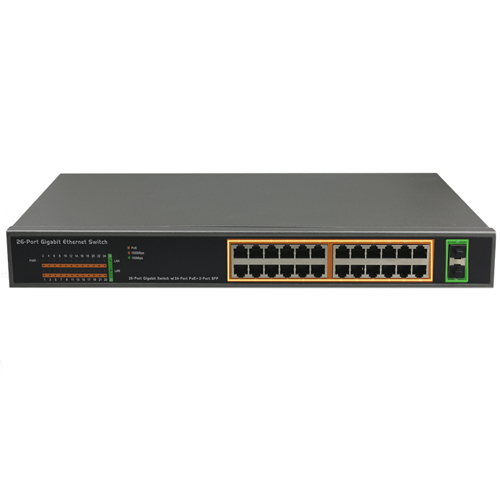

PoE-S24G-2SFP(250W)

Standards

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX (Fast Ethernet)

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3af/at Power over Ethernet cable pairs or device

PoE Performance

PoE over current protection; PoE circuit sorting protection

PoE power output: Per Port 54V, PoE single port: 30 Watt MAX

Power consumption: 250 Watts (Max)

PoE power budget: 230 Watts

PoE power supply Type:1/2(+)3/6(-), Mode-A, End-Span

PoE port priority: support

Storage and forward: support

Switch capacity: 52Gbps; Throughput: 38.7Mpps

MAC Address Table: 8K; Memory Buffer: 4.1M

Transmission Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

1000Base-SX:62.5μm/50μm MMF(2m~550m)

1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

LED Indicators

PoE In-Use (orange); Power (orange);10/100/1000Mbps Link/ ACT(green)

Network Interface

24x10/100/1000Mbps RJ-45; (PoE 1~24 ports), Auto-MDI/MDI-X ports

2x1000Base-SX/LX SFP

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Packing dimension/weight

530*290*100mm/ 3.6kg 4pcs/carton; carton size: 545*320*425/16.5kg

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
