Product Details:
|
Model Number: |
PoE-S24M-2G-2SFP |
Ports: |
24 FE Ports + 2GE+2 SFP |
|
Min. Order Qty: |
1 PCS |
Trade Term |
EX WORKS, FOB, CIF… |
|
Products Status: |
Make-to-Order/Stock |
Delivery Time: |
1-30 days |
|
Certification: |
CE, FCC, ROHS |
Warranty |
3 Years |

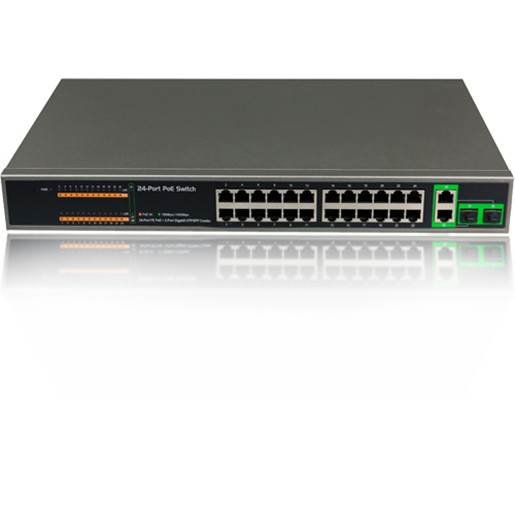

Key Features
-26
Port PoE+ Switch (24 PoE+ Ports +2 Gigabit Ethernet /2 SFP Uplink)
-Up to 30W of power per port (Mode A)
-Complies to IEEE 802.3at/af PoE standard and is backward
- Safe: Low Power Devices Receive Only the Power They Need
-Safe and Reliable Power to WLAN Access Points
-Automatic Detection and Protection of Non–standard Ethernet Terminals
-Supports 10/100 Base-T applications
- Compact Design Fits Easily in WLAN Access
-Rack
type
-Plug-and-Play no configuration required
-Save up to 83% power with Green Technology
Technical Specification:
|
Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3at IEEE 802.3af |
|
PoE Performance |
PoE Standard: IEEE 802.3af/at Power over Ethernet PoE over current protection; PoE circuit sorting protection PoE Power Output: Per Port 54V, POE single port: 30 Watt MAX Power Consumption: 250 Watts(Max) PoE Power Budget: 230 Watts PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span PoE port priority: support Storage and forward: support
Switch Capacity: 8.8Gbps; Throughput: 6.4Mpps
MAC Address Table: 8K; Memory Buffer: 4.1M
|
|
Transmission Media |
10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m) |
|
LED Indicators |
POE MAX/Port POE in use(Orange) (1~24Port): 100 Mbps (Green); 25~26) 10/100/1000Mbps(Green); Power (Green) Link/ ACT(Green) |
|
Network Interface |
24x 10/100Mbps RJ-45 ports, (PoE 1~24 ports), Auto-MDI/MDI-X 2x 10/100/1000Mbps RJ-45 ports 2x SFP slots (1000Base-SX/LX) |
|
Power Input |
100~240V/AC, 50~60 Hz, Internal Power Supply |
|
Dimension |
440*220*44mm |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Certifications |
CE/FCC/ROHS |
