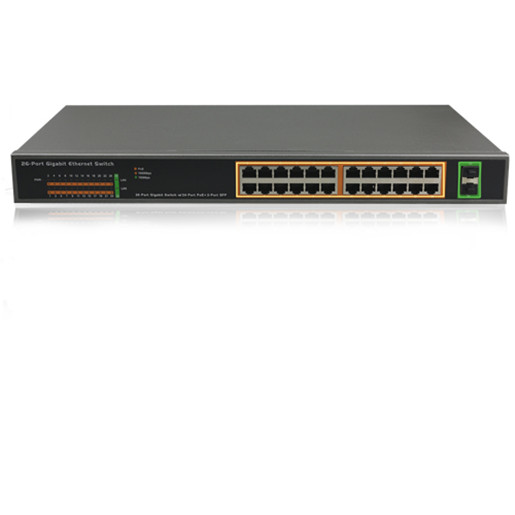

PoE-S24G-2SFP

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection; PoE circuit sorting protection

PoE Power Output: Per Port 54V, POE single port: 30 Watt MAX

Power Consumption: 250 Watts(Max)

PoE Power Budget: 230 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 52Gbps; Throughput: 38.7Mpps

MAC Address Table: 8K; Memory Buffer: 4.1M

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

POE MAX/Port POE in use(Orange)

(1~24Port): 100 Mbps (Green); 1000Mbps(Orange); (25~26)10/100/1000Mbps(Orange);
Power (Orange); Link/ ACT(Green&Orange)

Network Interface

24x 10/1000Mbps RJ-45 ports, (PoE 1~24 ports), Auto-MDI/MDI-X

2 x SFP Slots (1000Base-SX/LX)

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Dimension

440*220*44mm

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
