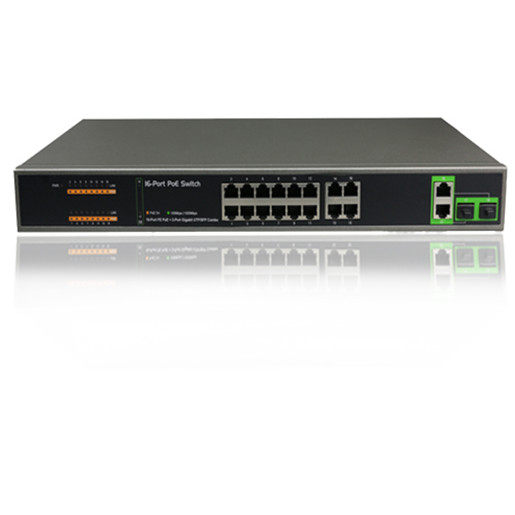

PoE-S16M-2G-2SFP

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection; PoE circuit sorting protection

PoE Power Output: Per Port 54V, POE single port: 30 Watt MAX

Power Consumption: 250 Watts(Max)

PoE Power Budget: 230 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Capacity: 7.2Gbps; Throughput: 6.4Mpps

MAC Address Table: 8K; Memory Buffer: 4.1M

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m）

LED Indicators

POE MAX/Port POE in use(Orange)

(1~16Port): 100 Mbps (Green);(17~18)

10/100/1000Mbps(Green); Power (Green);  Link/ ACT(Green)

Network Interface

16x 10/100Mbps RJ-45; (PoE 1~16 ports), Auto-MDI/MDI-X ports

2x 10/100/1000Mbps RJ-45

2 x1000Base-SX/LX SFP Slots

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Dimension/Weight

380*230*80mm/1.75kg

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
