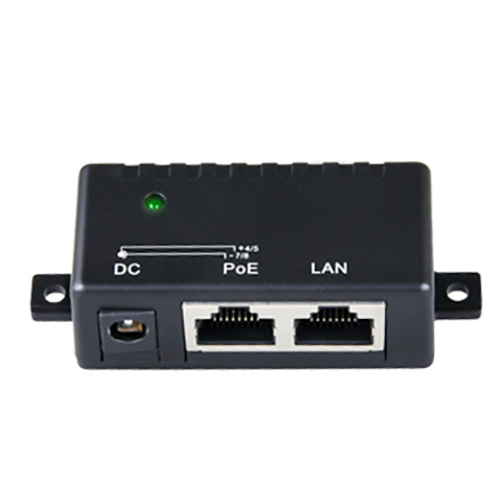

PJ48M30S Passive Injector/Splitter（100Mpbs Power Input/Out: DC3~56V Power Pin: 4/5(+)7/8(-)

Product Details:

The PJ48M30S Passive POE power supply supports a variety of DC power inputs. The power adapter can be connected to the PJ48M30S Passive according to the voltage required by your POE network equipment. The DC power supply can be loaded to the RJ45 Ethernet power supply port through it PoE function network equipment power supply. Of course, using PJ48M30S Passive can not only convert the power adapter to POE Ethernet for output, but also use the second group of PJ48M30S Passive to receive the transmission network source with Data (LAN) data and POE power, and then split it into Data (LAN) port and DC power output to devices that generally do not have POE function DC IN (such as IP CAM, wireless base station, other devices, etc.)

PJ48M30S Passive injector data transmission will use (1/2;3/6) Pin transmission above Cat5, while POE power supply will use (4/5;7/8) Pin transmission technology.

Using PJ48M30S Passive has a simple wall-mounted and simple side connection method, which provides a better solution for the difficulty of setting up the power supply, provides a simple installation method for complex environments and saves unnecessary wiring costs

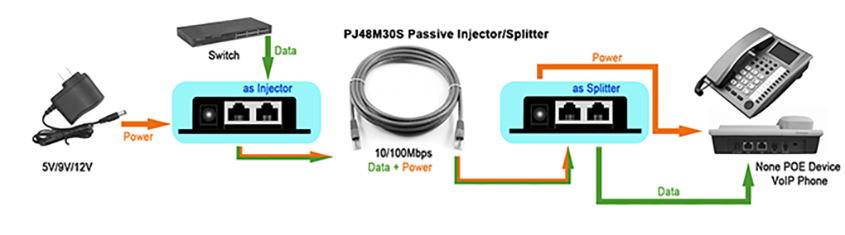

Example1:  Networking for NON- POE equipment as PoE Injector and PoE Splitter

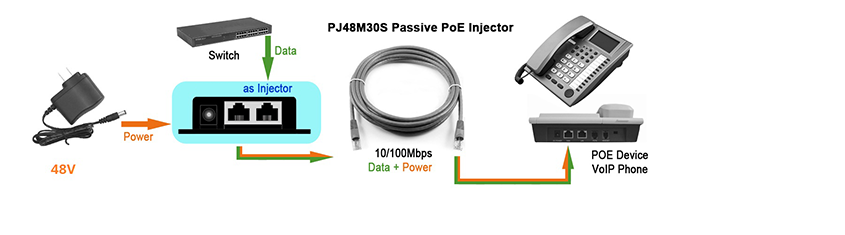

Example2: Networking for POE equipment:

Key Features:

-Can be used as injector and splitter.

-POE injector output supports 3-56V

-POE injector with panel mount design for simply establishing

-POE Pin: 4,5(+); 7,8(-)

-With OEM 2.5*5.5mm/2.1*5.5mm DC available

-With PCB protected, more stable voltage and current for power over ethernet. and support 50m long distance.

-Panel mounted housing design for easy construction on wall, ideal for DIY small network customers.

-Suitable for IP camera, wireless AP, VoIP and more PD devices and easy for DIY customer.

-Supports 10/100/1000Base-T with our stand PoE injector and splitter.

Caution: directly power output on PDs Passive "always on" power

Technical Specification:
