PJ48M-30W Passive(100Mpbs, 30W)

  • Product description: Passive Single-Port PoE Injector PoE standards: Non-standard 30W 100Mpbs Power Pin: 4/5(+)7/8(-)
  • INQUIRY

Product Details:

Model Number:

PJ48M-30W passive

Ports:

1xPoE + 1xUplink

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 year

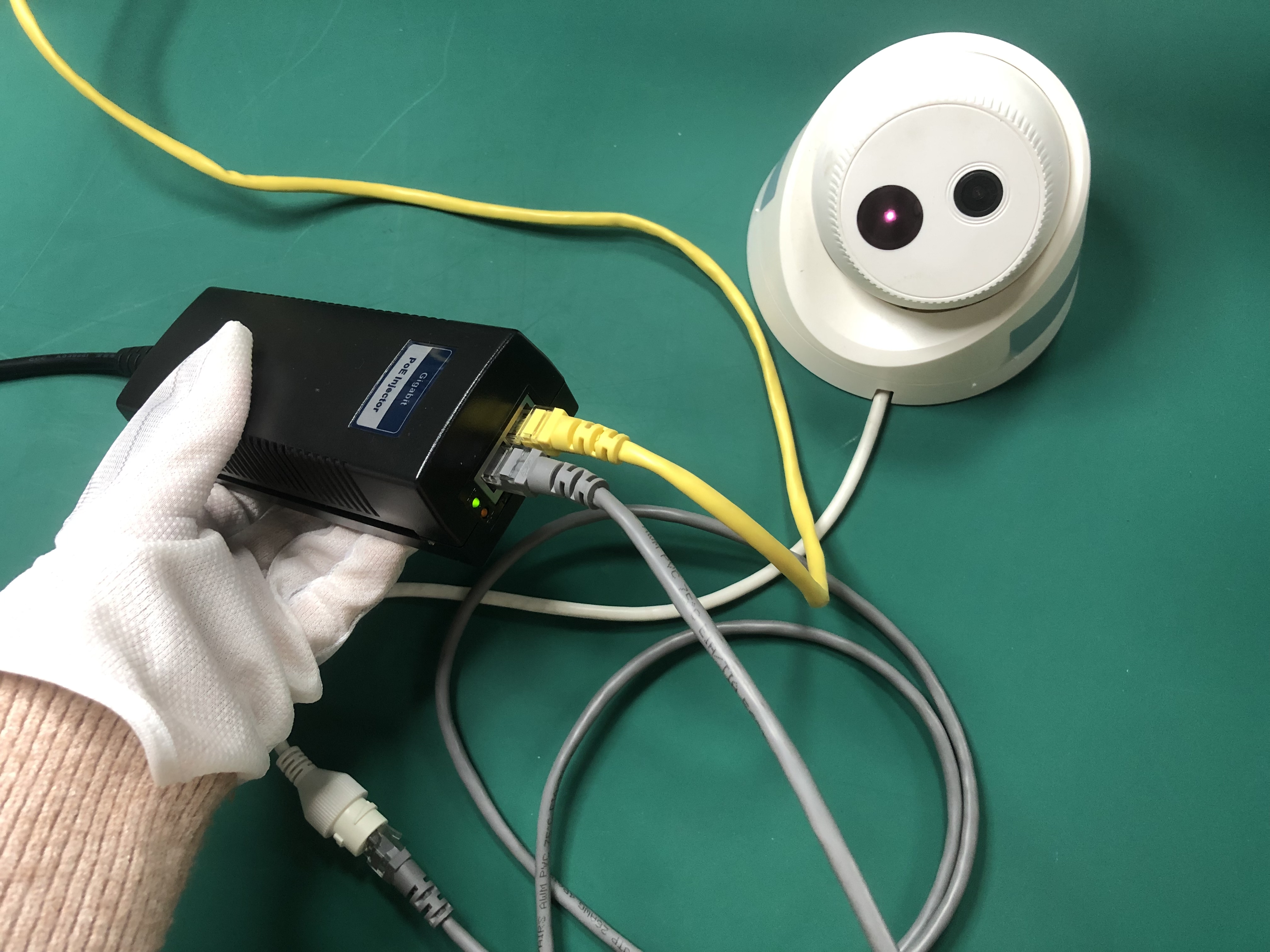

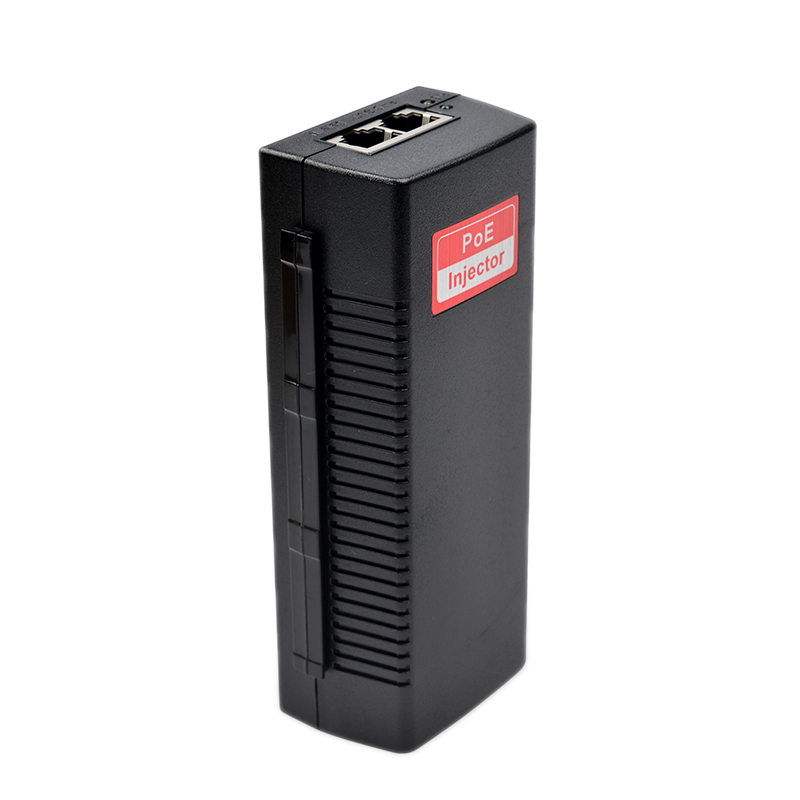

The PJ48M-30W passive injector is a Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product can convert standard 100~240VAC power into low voltage DC that runs over existing LAN cable to power up the network device with PoE function directly.


Key Features:

- Up to 30W Power (compatible with standard PoE Injector PJ802 with IEE802.3at)

- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable

- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size
- Supports 10/100Base-T LAN environment
- Unique interlocking feature for easy installation

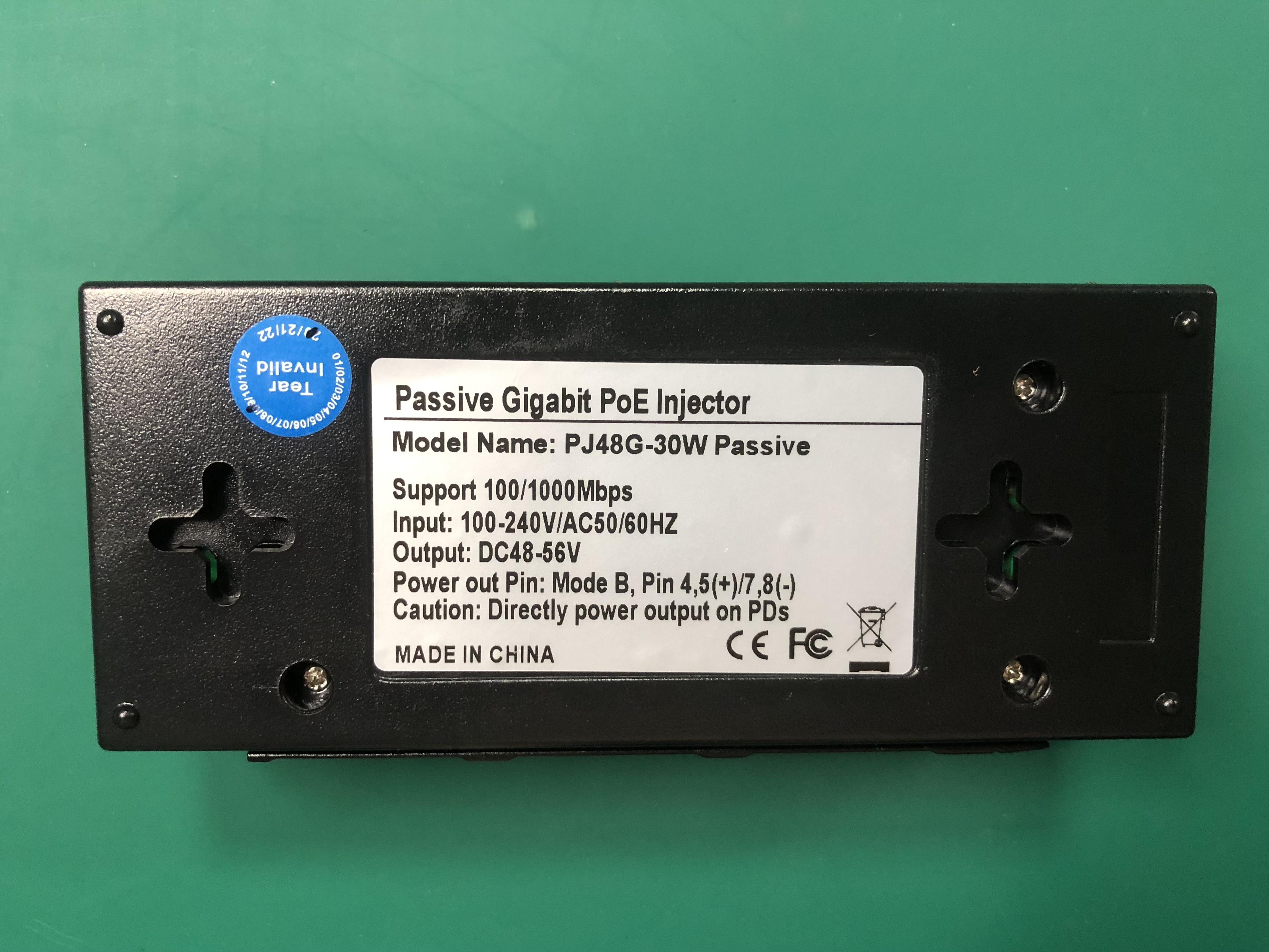

Caution: directly power output on PDs Passive "always on" power

Technical Specification:

Standards

Non-standard

PoE Performance

Power Input: AC 100V-220V50-60HZ

PoE Power Output: 48~56V/30W

Power Pin Assignment: 4/5(+)7/8(-), Mode-B, End-Span

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100Base TX: Category 5 and above unshielded twisted pair (≤ 100m)

LED Indicators

Power/PoE Status

Network Interface

1*PoE Port at 10/100Mbps
1*Uplink Port at 10/100Mbps

Dimension/weight

55*125*210mm/ 400g 40pcs/carton, carton size: 580*435*277 16kg

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
