Product Details:
|

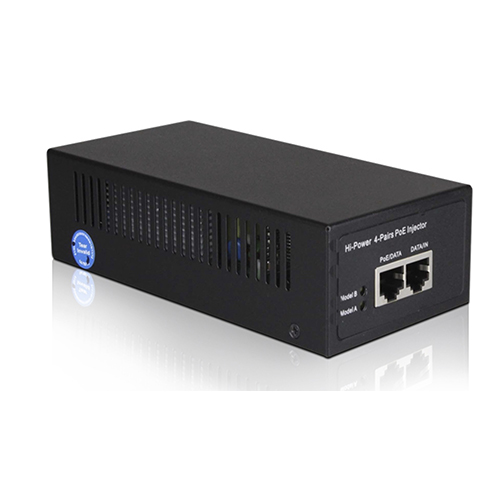

Model Number: |
UPJ156G-60W |
Ports: |
1xPoE + 1xUplink |
|
Min. Order Qty: |
1 PCS |
Trade Term |
EX WORKS, FOB, CIF… |
|
Products Status: |
Make-to-Order/Stock |
Delivery Time: |
1-30 days |
|
Certification: |
CE, FCC, ROHS |
Warranty |
1 Year |
Key Features:
- Up to 60W of PoE Power on 4-Pair
- IEEE 802.3at Compliant-With Higher Power
- Compatible with all IEEE 802.3at,802.3af and Legqcy Powered
Devices
- Safe on Low Power Devices Receive Only the Power They Need
,2-Pair PDs receive power on 2-paris
- Safe and Reliable Power over Ethemet
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet
Terminals
- Supports 10/100/1000Base-T applicationes
Technical Specification:
|
Standards |
IEEE802.3at(4-Pair) |
|
PoE Performance |
PoE Standard: IEEE802.3at(4-Pair) Power Input: AC 100V-240V～50-60HZ PoE Power Output: 48~56V/60W PoE Power Supply Type: 1/2(+)3/6(-)+4/5(+)7/8(-) |
|
Transmission Media |
10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m) |
|
LED Indicators |
POE(Orange) POE MAX(Orange) |
|
Network Interface |
1
PoE Port at 10/100/1000Mbps |
|
Dimension/weight |
160mm*79mm*44mm |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Certifications |
CE/FCC/ROHS |
