  • Ultra PoE UPJ160G-60W

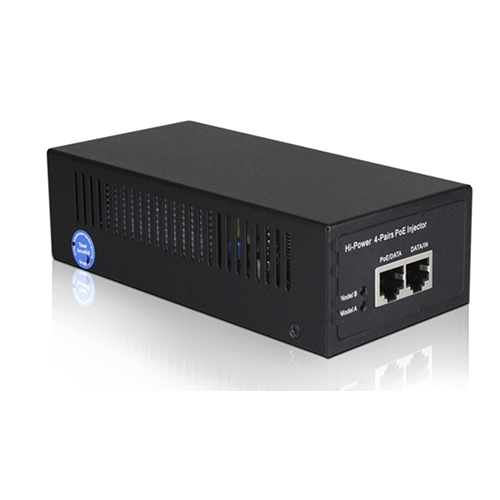

Ultra PoE UPJ160G-60W

Ultra PoE UPJ160G-60W

  • Product description: Single Gigabit Port PoE Injector 60W
  • INQUIRY

Product Details:

Model Number:

UPJ160G-60W

Ports:

1xPoE + 1xUplink

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 Year

Key Features:

- Up to 60W of PoE Power on 4-Pair
- Safe on Low Power Devices Receive Only the Power They Need , 2-Pair PDs receive power on 2-paris
- Safe and Reliable Power over Ethemet
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000Base-T applicationes

Technical Specification:

Standards

IEEE802.3at(4-Pair)

PoE Performance

PoE Standard:  IEEE802.3at(4-Pair)

Power Input: AC 100V-240V50-60HZ

PoE Power Output: 48~56V/60W

PoE Power Supply Type: 1/2(+)3/6(-)+4/5(+)7/8(-)

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

Made-A(Orange) Made-B(Orange)

Network Interface

1 PoE Port at 10/100/1000Mbps
1Uplink Port at 10/100/1000Mbps

Dimension/weight

160mm*79mm*44mm

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
