PoE Injector-Active

  • PJ801G60W
  • PJ801G60W
  • PJ801G60W
  • PJ801G60W
  • PJ801G60W
  • PJ801G60W
PJ801G60W PJ801G60W PJ801G60W PJ801G60W PJ801G60W PJ801G60W

PJ801G60W

  • Product description: Standard Single-Port PoE Injector IEEE802.3at-4pair 60W 1000Mpbs 1000Mbps
  • INQUIRY

Product Details:

Model Number:

PJ801G60W

Ports:

1xPoE + 1xUplink

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 year


Key Features:

-IEEE 802.3at compliant with 2-event classification

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of non–standard ethernet terminals

-Compact design fits easily in WLAN access

-Supports 10/100/1000Base-T applications

-Plug-and-Play no configuration required

-Internal power supply

-Easy installation and maintenance

-Casing: plastic

Technical Specification:

Standards

IEEE 802.3 10-BASE-T

IEEE 802.3u 100-BASE-TX

IEEE 802.3ab 1000-BASE-T (Fast Ethernet)

IEEE 802.3af

IEEE 802.3at

PoE Performance

Power Input: 100~240V/AC, 50~60 Hz,

PoE Power Output: 48~56V/60W

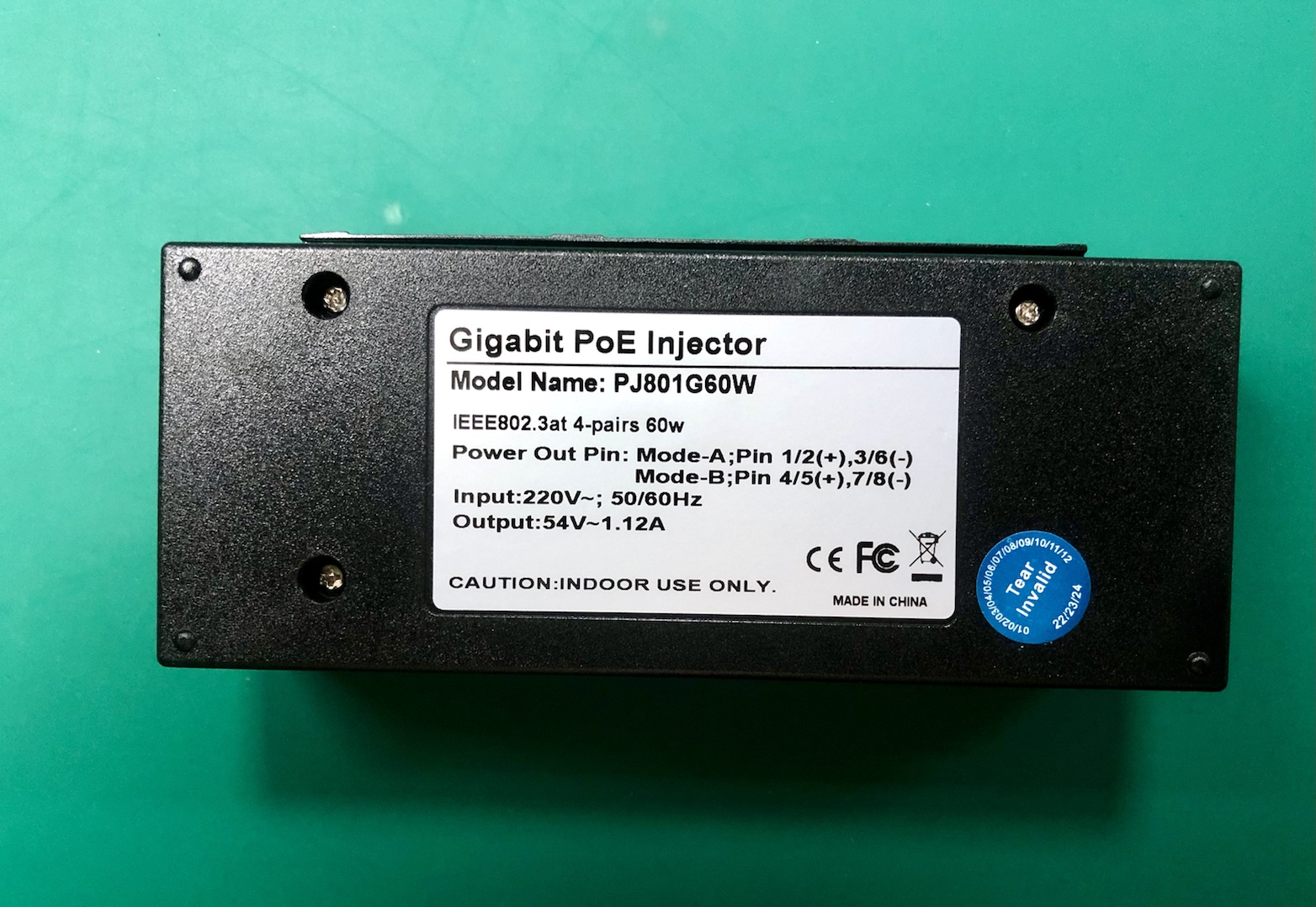

Power Pin Assignment: 1/2(+)3/6(-) & 4/5(+)7/8(-)

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

Power/PoE Status

Network Interface

1*PoE Port at 10/100/1000Mbps
1*Uplink Port at 10/100/1000Mbps

Dimension/weight

55*125*210mm/ 400g 40pcs/carton, carton size: 580*435*277 16kg

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
