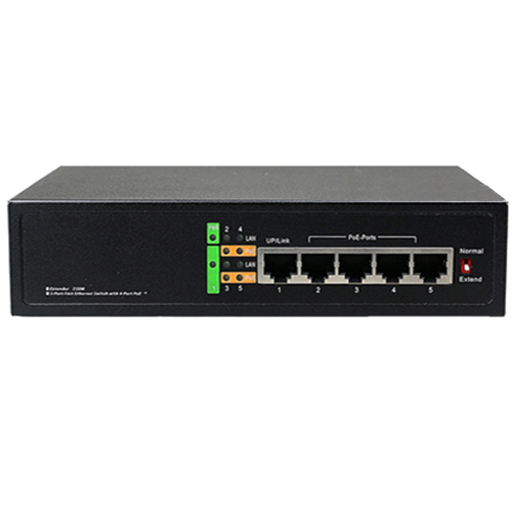

Product Details:
|
Model Number: |
POE-S4M-1MUPL-EX |
Ports: |
4 FE PoE + 1 Uplink+Extend |
|
Min. Order Qty: |
1 PCS |
Trade Term |
EX WORKS, FOB, CIF… |
|
Products Status: |
Make-to-Order |
Delivery Time: |
1-30 days |
|
Certification: |
CE, FCC, ROHS |
Warranty |
3 Years |
Key Features:
- IEEE 802.3at Up to 30W of PoE per port
- IEEE 802.3at Compliant with 2-event classification
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100 Base-T applications
- Switch Extend ,1-4 Port V-Lan on; 5E cat Cable Distance 250M; DataRate change to be :10Mbps
- Compact Design Fits Easily in WLAN Access
- Plug-and-Play no configuration required
- Supports 10/100 Base-T applications
- Internal power supply
-Easy installation and maintenance
Technical Specification:
|
Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3at Power over Ethernet |
|
PoE Performance |
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE short circuit protection PoE Power Output: Per Port 54V DC, Max. 30 watts Power Pin Assignment: 1/2(+), 3/6(-)
Switch Capacity: 1.0Gps; Throughput: 0.1448Mpps MAC Address Table: 2K; Memory Buffer: 448k |
|
Transmission Media |
10 BaseT Cat 3,4,5 UTP/STP 100M BaseTx CAT 5 UTP/STP |
|
LED Indicators |
Per Port: PoE in use(Orange), 10/100 Link/Act(Green) Green: Power |
|
Network Interface |
4 x 10/100Mbps RJ-45 (PoE 2~5 Ports) Auto-MDI/MDI-X ports 1 x 10/100Mbps RJ-45 Uplink |
|
Power Input |
Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply |
|
Power Consumption |
60Watts(Max) |
|
Normal Mode |
100M;10/100Mbps; |
|
Extend Mode |
250M; Port#1: 10/100MbPS; Port#2~5: 10Mbps, V-lan |
|
Mode switch |
V-lan |
|
Dimension/Weight |
185 x 118 x 44 mm / 800g |
|
Temperature |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Certifications |
CE/FCC/ROHS |
