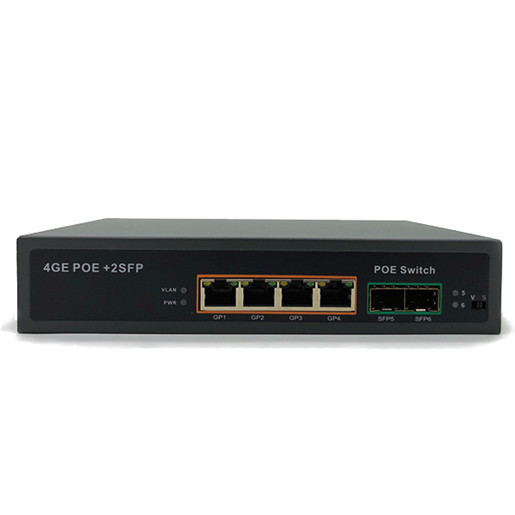

PoE-S4G-2SFP

Standards

IEEE 802.3 10-BASE-T

IEEE 802.3u 100-BASE-TX

IEEE 802.3ab 1000-BASE-T

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE Power Output: Per Port: 54V/DC, 1.2A Max. 15.4 watts

Power Consumption: 65 Watts(Max)

PoE Power Budget: 60 Watts

PoE port priority: support

Storage and forward: support

Switch Capacity: 12Gbps; Throughput: 9.216Mpps

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

10/100 Link/Act(Green) Power(Green)

Network Interface

4 x 10/100/1000Mbps RJ-45 (PoE 1~4 Ports) Auto-MDI/MDI-X ports

2 x1000Base-SX/LX SFP Slots

Power Input

Input: 100~240V/AC, 50~60 Hz, Internal Power Supply

Power Consumption

65Watts(Max)

Dimension/Weight

185 x 118 x 44 mm / 800g

Temperature

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
