  • PoE-S4G-1G(65W)
PoE-S4G-1G(65W)

PoE-S4G-1G(65W)

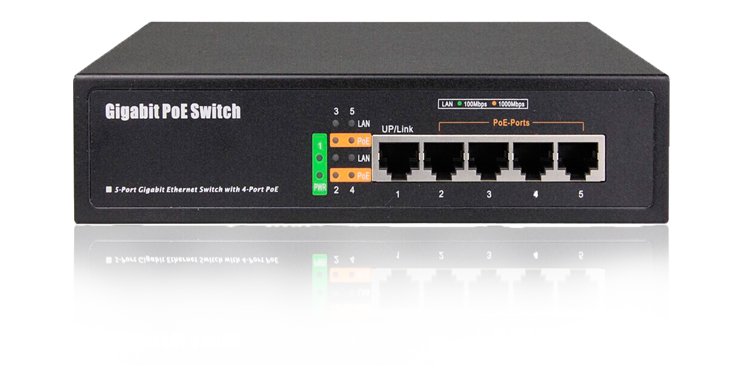

  • Product description: 4-Ports PoE 10/100/1000Mbps TP+ 1-Port 10/100/1000Mbps Up-link PoE Switch
  • INQUIRY

Product Details:

Model Number:

PoE-S4G-1GUPL

Ports:

4GE PoE + 1 GE Uplink

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

3 Years

Key Features:

-Up to 15.4W/25.4W of Power on

-IEEE 802.3at Compliant with 2-event classification

-Safe: Low Power Devices Receive Only the Power They Need

-Safe and Reliable Power to WLAN Access Points

-Automatic Detection and Protection of Non–standard Ethernet Terminals

-Compact Design Fits Easily in WLAN Access

-Ethernet Terminals

-Supports 10/100 /1000Base-T applications

-Plug-and-Play no configuration required

-Internal power supply

-Easy installation and maintenance

Technical Specification:

Standards

IEEE 802.3 10-BASE-T

IEEE 802.3u 100-BASE-TX

IEEE 802.3ab 1000-BASE-T

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af



PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE Power Output: Per Port 54V DC, 600MA, Max. 30 watts

Power Consumption: 65 Watts(Max)

PoE Power Budget: 60 Watts

PoE port priority: support

Storage and forward: support


Switch Capacity: 10Gbps; Throughput: 7.44Mpps

MAC Address Table: 2K; Memory Buffer: 2M


Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

Port: PoE in use(Green), Power:Orange

Network Interface

4x 10/100/1000Mbps RJ-45 (PoE 2~5 Ports) Auto-MDI/MDI-X

1x 10/100/1000Mbps RJ-45 Uplink

Power Input

Input: 100~240V/AC, 50~60 Hz, Internal Power Supply

Power Consumption

65 Watts(Max)

Dimensions: (L x W x H)

185 x 118 x 44 mm / 800g

Temperature

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
