PoE Splitter

PSG-at124(PoE Splitter IEEE802.3at-4pair Power out: 12V/4A 100/1000M)

Product description: PSG-at124 PoE Splitter IEEE802.3at-4pair; Power out: 12V/4A 10/100/1000M
INQUIRY

Product Details:

Model Number:	PSG-at124	Ports:	/
Min. Order Qty:	1 PCS	Trade Term	EX WORKS, FOB, CIF
Products Status:	Make-to-Order/Stock	Delivery Time:	1-30 days
Certification:	CE, FCC, ROHS	Warranty	1 year

Product Overview

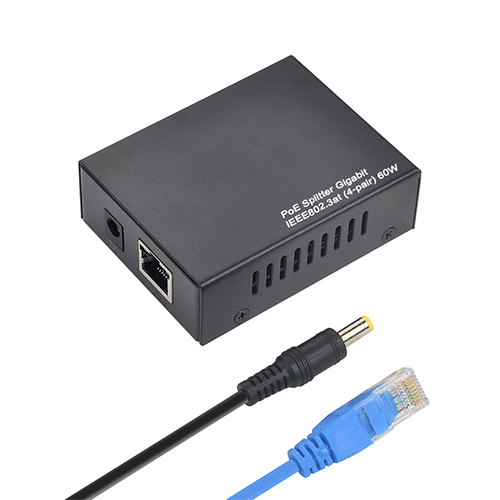

The PSG-at124 Gigabit PoE Splitter splits a networked PoE Signal into separated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are also available in the following output voltages (12V/4A).

Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds

Key Features:

- Network devices at Gigabit speeds all within a compact device
- Automatically detects PoE terminals and supplies inline power
- Easily install non-PoE devices where a power outlet is not available

- Reduce installation and network equipment costs
- Safeguards network device with short circuit protection
- Converts Non-PoE devices with Power Over Ethernet Support
- Supplies power up to 48 watts connected to PoE Injector with IEEE 802.3at-4pair 60W/bt60-90W
- Light weight and compact size

Technical Specification:

Standards	IEEE 802.3af/at(30w)/at-4pair(60W)
Interface	1Power Input 1Power Output 1*Data Output Port: RJ45 Data Transfer Rate: 100/1000Mbps
Power Input	44-57VDC
Power Output	12V/4A
DC plug	terminal black/3 pin; DC Jack (5.5*2.1mm)
LED Indicators	PoE (Orange)
Power Pin	1/2(+)3/6(-) or 4/5(+)7/8(-)
Isolation	Support
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
