PoE Splitter

  • PSG-at51218(PoE Splitter IEEE802.3at Power out: 5V/3.5A; 12V/2A;18V/1A 100/1000M)
  • PSG-at51218(PoE Splitter IEEE802.3at Power out: 5V/3.5A; 12V/2A;18V/1A 100/1000M)
PSG-at51218(PoE Splitter IEEE802.3at Power out: 5V/3.5A; 12V/2A;18V/1A 100/1000M) PSG-at51218(PoE Splitter IEEE802.3at Power out: 5V/3.5A; 12V/2A;18V/1A 100/1000M)

PSG-at51218(PoE Splitter IEEE802.3at Power out: 5V/3.5A; 12V/2A;18V/1A 100/1000M)

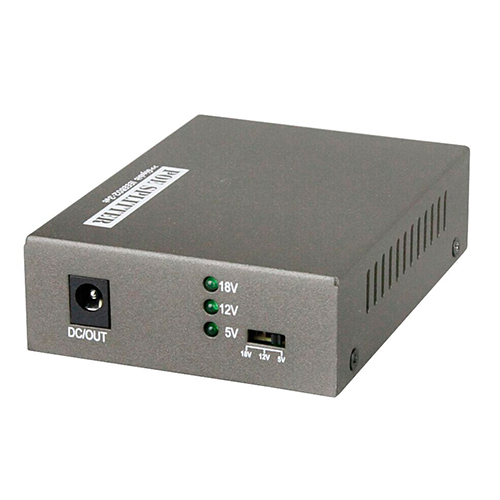

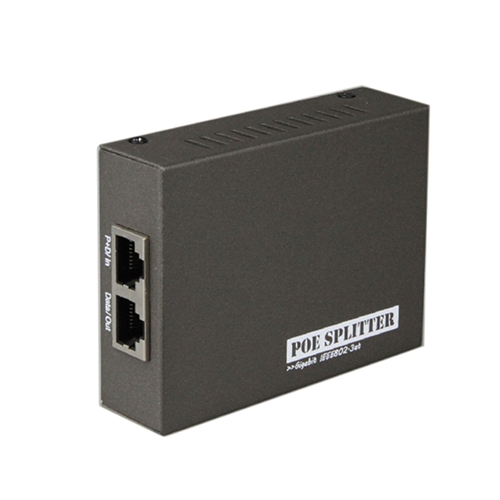

  • Product description: PSG-at51218 adjustable PoE Splitter IEEE802.3at; Adjustable Power out:5V/3.5A; 12V/2A;18V/1A 10/100/1000M
  • INQUIRY

Product Details:

Model Number:

PSG-at51218

Ports:

/

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 Year

Key Features:

-Network devices at Gigabit speeds all within a compact device
-Automatically detects PoE terminals and supplies inline power
-Easily install non-PoE devices where a power outlet is not available
-Reduce installation and network equipment costs
-Safeguards network device with short circuit protection
-Adjustable output DIP switch for 5V, 12V, and 18V adjustable output
-Converts Non-PoE devices with Power Over Ethernet Support
-Auto-sensing power drawn from 802.3at power source equipment (PSE) devices
-Supplies power up to 30 watts
-Provides Interchangeable tips

Technical Specification:

Standards

IEEE 802.3af/at(30w)

Interface

1*Power Input

1*Power Output
1*Data Output Port: RJ45

Data Transfer Rate: 100/1000Mbps

Power Input

37-57VDC

Power Output

5V/3.5A; 12V/2A;18V/1A

DC plug

5.5mm*2.1mmO.D and I.D

LED Indicators

PoE (green)

Power Pin

support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

Isolation

Support

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
