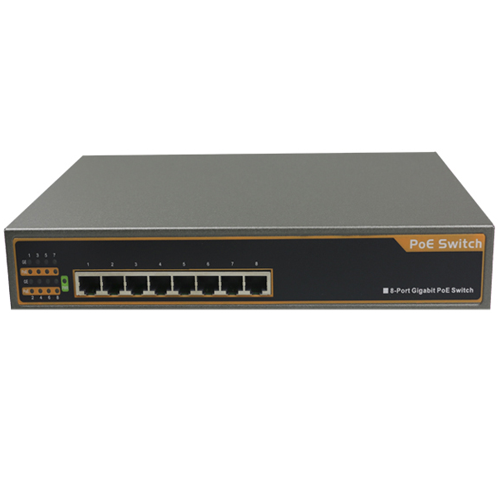

PoE Switch Unmanaged Gigabit

PoE-S8G(150W)

Product description: IEEE802.3af/at Gigabit PoE Switch 8-Ports PoE 10/100/1000Mbps Total power: 150W
INQUIRY

Product Details:

Model Number:	PoE-S8G(150W)	Min. Order Qty:	1 PCS
Products Status:	Make-to-Order /Stock	Warranty	2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE circuit sorting protection PoE Power output: Per Port 54V DC, Max. 30 watts /port Power consumption: 150 Watts (Max) PoE power budget: 123 Watts PoE power supply type:1/2(+)3/6(-), Mode-A, End-Span PoE port priority: support Storage and forward: support Switch capacity: 16Gbps; Throughput: 11.9Mpps MAC Address Table: 2K; Memory Buffer: 2M
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
LED Indicators	Per Port: PoE in use (Orange), Power: Green, 10/100M Link/Act (Green); 1000M Link/Act (Green)
Network Interface	8x10/100/1000Mbps RJ-45; (PoE 1~8 Ports) Auto-MDI/MDI-X
Power Input	100~240V/AC, 50~60 Hz
Packing dimensions/weight	378x230x80mm/1.8KG 8pcs/carton; carton size: 480340400/15.5kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
