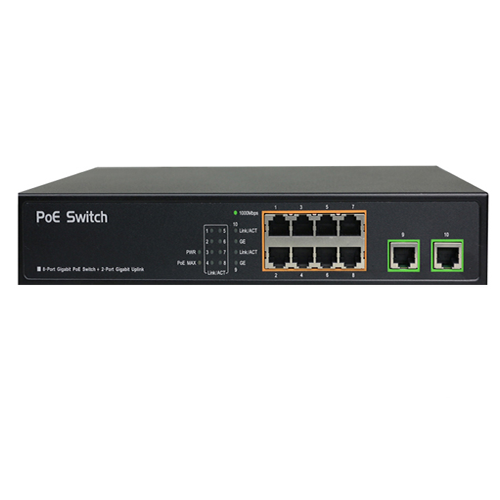

PoE Switch Unmanaged Gigabit

  • PoE-S8G-2G(150W)
PoE-S8G-2G(150W)

PoE-S8G-2G(150W)

  • Product description: IEEE802.3af/at 8-Ports PoE 10/100/1000Mbps 2-Ports 10/100/1000Mbps Up-link Total PoE power: 150W
  • INQUIRY

Product Details:

Model Number:

PoE-S8G-2G(150W)

Min. Order Qty:

1 PCS

Products Status:

Make-to-Order /Stock

Warranty

2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards

IEEE 802.3 Ethernet media access control protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX (Fast Ethernet)

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3af/at Power over Ethernet cable pairs or device

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE power output: Per Port 54V DC, 2.78A, Max. 30 watts

Power consumption: 150 Watts (Max)

PoE power budget: 123 Watts

PoE power supply type:1/2(+)3/6(-),Mode-A, End-Span

PoE port priority: support

Storage and forward: support

Switch Fabric: 20Gbps; Throughput: 14.88Mpps

MAC Address Table: 4K; Memory Buffer: 2M

Transmission Media

10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)

LED Indicators

PoE MAX/Port PoE in use (orange) 10/100/1000Mbps

Link/ ACT(Green)

Network Interface

8x10/100/1000Mbps RJ-45 (PoE 1~8 Ports); Auto-MDI/MDI-X

2x10/100/1000Mbps RJ-45 Up-link

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Packing dimensions/weight

378*230*80MM/1.8kg 8pcs/carton; carton size: 480*340*400/15.5kg

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
