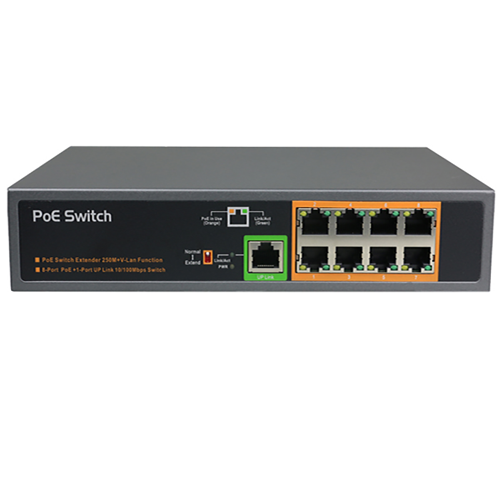

PoE Switch Unmanaged Fast Ethernet

PoE-S8M-1M-EX(150W)

Product description: IEEE802.3af/at 8-Ports PoE 10/100Mbps 1-Port 10/100Mbps Up-link Extend 250m Switch Extend 1-8Port V-Lan on Total PoE power: 150W
INQUIRY

Product Details:

Model Number:	PoE-S8M-1M-EX(150W)	Min. Order Qty:	1 PCS
Products Status:	Make-to-Order /Stock	Warranty	2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Switch Extend ,1-8 Port V-Lan on; 5E cat Cable Distance 250M; Data Rate:10Mbps

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE Standard: IEEE 802.3af/at Power over Ethernet PoE over current protection PoE circuit sorting protection PoE power output: Per Port 54V DC, Max. 30 watts/port Power consumption: 150 Watts (Max) PoE power budget: 123 Watts PoE power supply type:1/2(+)3/6(-), Mode-A, End-Span PoE port priority: support Storage and forward: support Switch Capacity: 1.8Gbps; Throughput: 1.34Mpps MAC Address Table: 2K; Memory Buffer: 768K
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
LED Indicators	Per Port: PoE in use (orange), Power: Green, 10/100M Link/Act (Green)
Network Interface	8x10/100Mbps RJ-45; (PoE 1~8 ports), Auto-MDI/MDI-X 1x10/100Mbps RJ-45 Uplink port
Power Input	100~240V/AC, 50~60 Hz, Internal Power Supply
Power Consumption	150Watts (Max)
Switch Extend	1-8 Port V-Lan on; 5E cat Cable Distance 250M; Data Rate:10Mbps
V-Lan	V-Lan Mode (MTU VLan 1-8 port only connected to port 9)
Packing dimensions/weight	325x210x70mm / 1.5KG 10pcs/carton; carton size: 440377350/16kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
