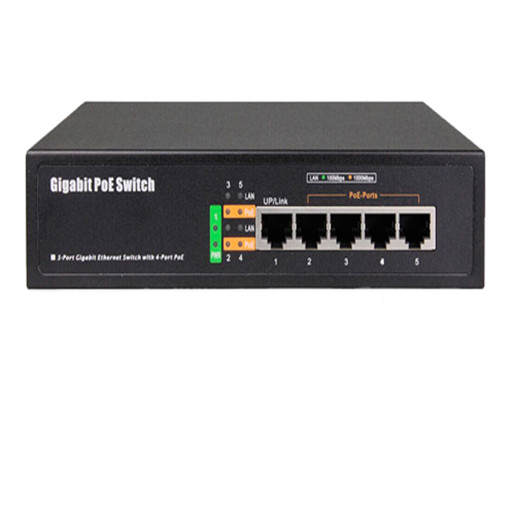

PoE Switch Unmanaged Gigabit

PoE-S4G-1G(65W)

Product description: IEEE802.3af/at Gigabit PoE Switch 4-Ports PoE 10/100/1000Mbps 1-Ports 10/100/1000Mbps Up-link Total power: 65W
INQUIRY

Product Details:

Model Number:	PoE-S4G-1G(65W)	Min. Order Qty:	1 PCS
Products Status:	Make-to-Order /Stock	Warranty	2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE over current protection; PoE circuit sorting protection PoE power output: Per Port 54V DC, 600MA, Max. 30 watts Power consumption: 65 Watts (Max) PoE power budget: 60 Watts Power Pin Assignment:1/2(+)3/6(-), Mode-A, End-Span PoE port priority: support Storage and forward: support Switch capacity: 10Gbps; Throughput: 7.44Mpps MAC Address Table: 2K; Memory Buffer: 2M
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(≤150m)
LED Indicators	Port: PoE in use (Green), Power: Orange
Network Interface	4x10/100/1000Mbps RJ-45 (PoE 2~5 Ports) Auto-MDI/MDI-X 1x10/100/1000Mbps RJ-45 Uplink
Power Input	Input: 100~240V/AC, 50~60 Hz, Internal Power Supply
Power Consumption	65 Watts (Max)
Packing dimension/weight	242x245x62 mm / 1kg 10pcs/carton; carton size: 505335263/11kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
