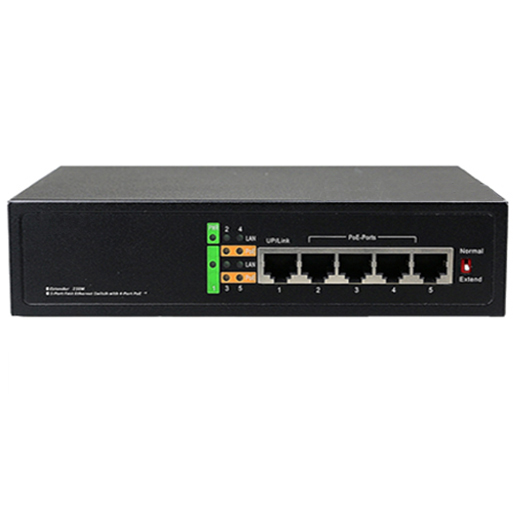

PoE Switch Unmanaged Fast Ethernet

PoE-S4M-1M-EX(65W)

Product description: IEEE802.3af/at 4-Ports PoE 10/100Mbps 1-Port 10/100Mbps Up-link Extend 250m Switch Extend 2-5Port V-Lan on; Total power:65W
INQUIRY

Product Details:

Model Number:	PoE-S4M-1M-EX(65W)	Min. Order Qty:	1 PCS
Products Status:	Make-to-Order /Stock	Warranty	2 year

Key Features:

-Compliance with IEEE802.3af/at, support full port advance standard detection

-Switch extend, 2-5 Port V-Lan on; 5E cat Cable Distance 250M; Data Rate change to be :10Mbps

-Safe: low power devices receive only the power they need

-Safe and reliable power to WLAN access points

-Automatic detection and protection of Non–standard Ethernet Terminals

-Support Auto-MDI/MDI-X/ Support Non-Blocking data forward/ Support Auto-Negotiation and feature of store-and-forward

-Plug-and-Play no configuration required

-Internal power supply

-High-quality branded components parts used for manufacturing.

-Applied to CCTV IP camera, wireless AP, VoIP phone and other device requiring power over Ethernet cable

Technical Specification:

Standards	IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.1q VLAN Network bridge operation IEEE 802.3af/at Power over Ethernet cable pairs or device
PoE Performance	PoE over current protection PoE short circuit protection PoE Power Output: Per Port 54V DC, Max. 30 watts/port Power Pin Assignment: 1/2(+), 3/6(-) Mode-A, End-Span Switch Capacity: 1.0Gbps; Throughput: 0.1448Mpps MAC Address Table: 2K; Memory Buffer: 448k
Transmission Media	10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)
LED Indicators	Port: PoE in use (Green), Power: Orange
Network Interface	4x10/100Mbps RJ-45 (PoE 2~5 Ports) Auto-MDI/MDI-X ports 1x10/100Mbps RJ-45 Uplink
Power Input	Input: 100~240V/AC, 50~60 Hz, Internal Power Supply
Power Consumption	60Watts (Max)
Normal Mode	100M;10/100Mbps;
Extend Mode	250M; Port#1: 10/100Mbps; Port#2~5: 10Mbps, V-Lan
Mode switch	V-Lan
Packing dimension/weight	242x245x62mm /1.0kg 10pcs/carton; carton size: 505335265/11kg
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
