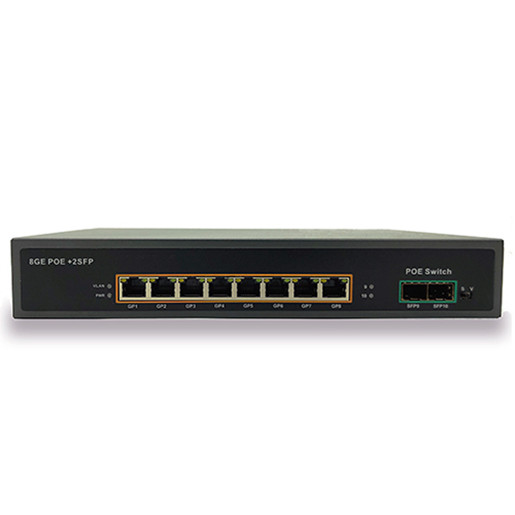

PoE-S8G-2SFP

Product Details:

Key Features

-IEEE 802.3af/at

-IEEE 802.3at compatible 2-event classification

-WLAN access point is safe and reliable

-Automatic detection and protection of non-standard Ethernet terminal

-Support 10 / 100 / 1000BASE-T application

-It supports IEEE 802.3x full duplex flow control and backpressure half duplex flow control.

-Support auto MDI / mdix function, all ports have line speed forwarding capability

-One key WLAN access

-Plug and play no configuration required

-Rack type

-Built in power supply

Technical Specification:

Standards	IEEE 802.3 10-BASE-T IEEE 802.3u 100-BASE-TX IEEE 802.3ab 1000-BASE-T IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3at IEEE 802.3af
PoE Performance	PoE Standard: IEEE 802.3af/at Power over Ethernet PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port: 54V/DC/2.78A, Max. 30 watts Power Consumption: 150 Watts(Max) PoE Power Budget: 123 Watts PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span PoE port priority: support Storage and forward: support Switch Capacity: 20Gbps; Throughput:14.88Mpps MAC Address Table: 4K; Memory Buffer: 2M
Transmission Media	10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)
LED Indicators	link / act / speed 10M / 100M / 1000M: Power: Green
Network Interface	8x 10/100/1000Mbps RJ-45 (PoE 1~8 Ports); Auto-MDI/MDI-X ports 2 x1000Base-SX/LX SFP Slots
Power Input	100~240V/AC, 50~60 Hz, Internal Power Supply
Dimensions/weight	360x 200x 60mm / 1.5KG
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
