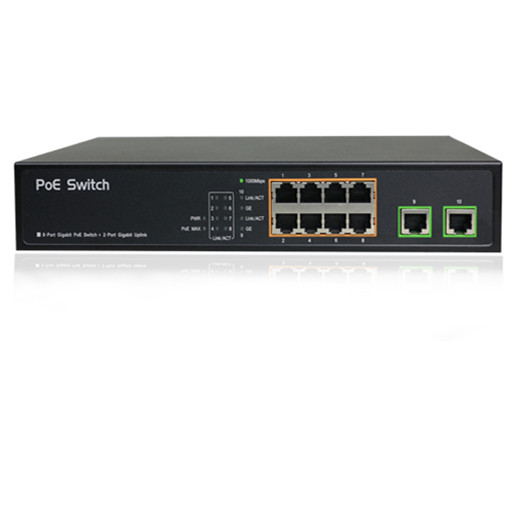

PoE-S8G-2GUPL

Product description: 8-Ports PoE 10/100/1000Mbps TP+ 2-Port 10/100/1000Mbps Up-link
INQUIRY

Product Details:

Model Number:	PoE-S8G-2GUPL	Ports:	8 GE ports+2GE UPL
Min. Order Qty:	1 PCS	Trade Term	EX WORKS, FOB, CIF…
Products Status:	Make-to-Order/Stock	Delivery Time:	1-30 days
Certification:	CE, FCC, ROHS	Warranty	3 Years

Key Features
-Up to 30W of Power on
-complies to IEEE 802.3af/at PoE standard and is backward
-Compatible with All IEEE 802.3af/at or Legacy
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000 Base-T applications
-Compact Design Fits Easily in WLAN Access
-Plug-and-Play no configuration required
-Internal power supply

-Rack type
-Save up to 83% power with Green Technology

Technical Specification:

Standards	IEEE 802.3 10-BASE-T IEEE 802.3u 100-BASE-TX IEEE 802.3ab 1000-BASE-T IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3at IEEE 802.3af
PoE Performance	PoE Standard: IEEE 802.3af/at Power over Ethernet PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port 54V DC, 2.78A, Max. 30 watts Power Consumption: 150 Watts(Max) PoE Power Budget: 123 Watts PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span PoE port priority: support Storage and forward: support Switch Fabric: 20Gbps; Throughput: 14.88Mpps MAC Address Table: 4K; Memory Buffer: 2M
Transmission Media	10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)
LED Indicators	Link/Act、Power PoE(MAX)
Network Interface	8x 10/100/1000Mbps RJ-45 (PoE 1~8 Ports); Auto-MDI/MDI-X 2x 10/100/1000Mbps RJ-45 Up-link
Power Input	100~240V/AC, 50~60 Hz, Internal Power Supply
Dimensions/weight	360x 200x 60mm / 1.5KG
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
