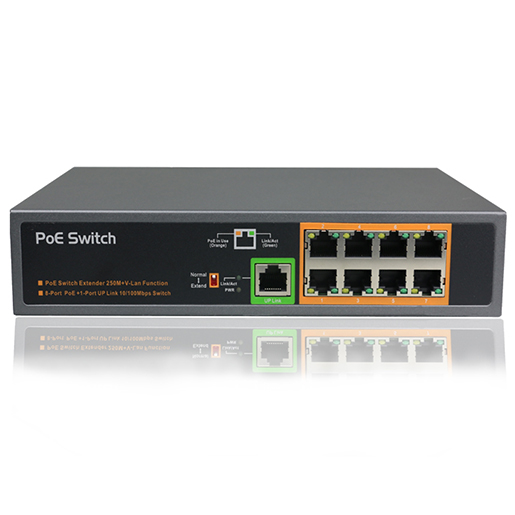

Product Details:
|
Model Number: |
PoE-S8M-1MUPL-EX |
Ports: |
8 FE Ports+1 FE Up-link+Extend |
|
Min. Order Qty: |
1 PCS |
Trade Term |
EX WORKS, FOB, CIF… |
|
Products Status: |
Make-to-Order/Stock |
Delivery Time: |
1-30 days |
|
Certification: |
CE, FCC, ROHS |
Warranty |
3 Years |
Key Features:
- IEEE 802.3at Up to 30W of PoE per port
- IEEE 802.3at Compliant with 2-event classification
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100 Base-T applications
- switch Extend ,1-4 Port V-Lan on; 5E cat Cable Distance 250M;DataRate:10mbps
- Compact Design Fits Easily in WLAN Access
- Plug-and-Play no configuration required
- Internal power supply
- Easy installation and maintenance
Technical Specification:
|
Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3at IEEE 802.3af |
|
PoE Performance |
PoE Standard: IEEE 802.3af/at Power over Ethernet PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port 54V DC, Max. 30 watts Power Consumption: 150 Watts(Max) PoE Power Budget: 123 Watts PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span PoE port priority: support Storage and forward: support
Switch Capacity: 1.8Gps; Throughput: 0.1448Mpps MAC Address Table: 2K; Memory Buffer: 1.25M
|
|
Transmission Media |
10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) |
|
LED Indicators |
Per Port: PoE in use(Orange),Power: Green, 10/100M Link/Act(Green) |
|
Network Interface |
8x 10/100Mbps RJ-45; (PoE 1~8 ports), Auto-MDI/MDI-X ports Extend 250m |
|
Power Input |
100~240V/AC, 50~60 Hz, Internal Power Supply |
|
Dimensions/weight |
250x 150x 44 mm / 1.5KG |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Certifications |
CE/FCC/ROHS |
