  • PoE-S16G-2SFP
PoE-S16G-2SFP

PoE-S16G-2SFP

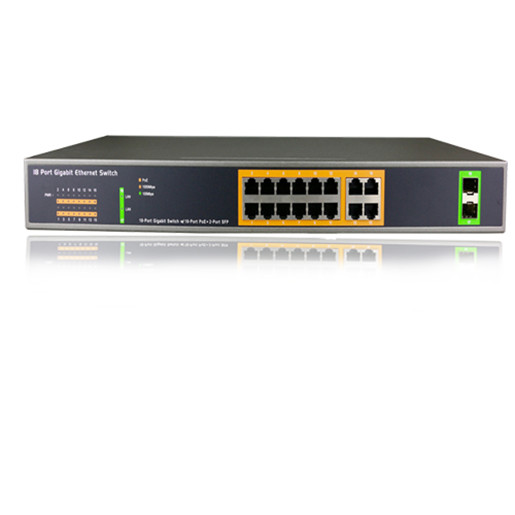

  • Product description: 16-Ports PoE 10/100/1000Mbps + 2 GE SFP slot (1000Base-SX/LX)
  • INQUIRY


Product Details:

Model Number:

PoE-S16G-2SFP

Ports:

16 GE Ports +2 SFP slot

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 Year

Key Features

-16 Gigabit PoE Ports at 10/100/1000Mbps each + 2 Gigabit  SFP Uplink (1000Base-SX/LX)
-Up to 30W of power per port (Mode A)
-Complies to IEEE 802.3at PoE standard and is backwards-compatible

-Safe: Low Power Devices Receive Only the Power They Need
-Safe and Reliable Power to WLAN Access Points
-Automatic Detection and Protection of Non–standard Ethernet Terminals
-Supports 10/100/1000 Base-T applications
-Compact Design Fits Easily in WLAN Access
-Plug-and-Play no configuration required

-Rack type
-Internal power supply
-Save up to 83% power with Green Technology

Technical Specification:

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection; PoE circuit sorting protection

PoE Power Output: Per Port 54V, POE single port: 30 Watt MAX

Power Consumption: 250 Watts(Max)

PoE Power Budget: 230 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Fabric: 36Gbps

MAC Address Table: 8K

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

POE MAX/Port POE in use(Orange)

(1~16Port): 1000 Mbps(Orange); (17~18)10/100/1000Mbps(Orange);

Power (Orange); Link/ ACT(Green&Orange)

Network Interface

16x 10/100Mbps RJ-45; (PoE 1~16 ports), Auto-MDI/MDI-X ports

2 x1000Base-SX/LX SFP Slots

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Dimension/Weight

380*230*80mm   1.7KG

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
