  • PoE-S8G-2GUPL

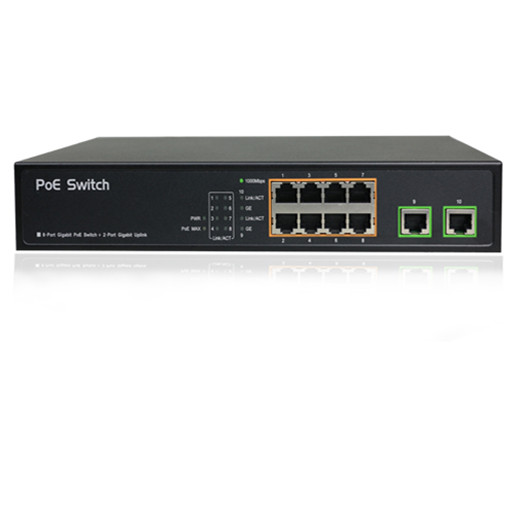

PoE-S8G-2GUPL

PoE-S8G-2GUPL

  • Product description: 8-Ports PoE 10/100/1000Mbps TP+ 2-Port 10/100/1000Mbps Up-link
  • INQUIRY


Product Details:

Model Number:

PoE-S8G-2GUPL

Ports:

8 GE ports+2GE UPL

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 Year

Key Features
-Up to 30W of Power on
-complies to IEEE 802.3af/at PoE standard and is backward
-Compatible with All IEEE 802.3af/at or Legacy
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100/1000 Base-T applications
-Compact Design Fits Easily in WLAN Access
-Plug-and-Play no configuration required
-Internal power supply

-Rack type
-Save up to 83% power with Green Technology

Technical Specification:

Standards

IEEE 802.3 10-BASE-T

IEEE 802.3u 100-BASE-TX

IEEE 802.3ab 1000-BASE-T

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at

IEEE 802.3af

PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet

PoE over current protection PoE circuit sorting protection

PoE Power Output: Per Port 54V DC, 2.78A, Max. 30 watts

Power Consumption: 150 Watts(Max)

PoE Power Budget: 123 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Fabric: 20Gbps

MAC Address Table: 4K

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)

LED Indicators

Link/ActPower  PoE(MAX)

Network Interface

8x 10/100/1000Mbps RJ-45 (PoE 1~8 Ports); Auto-MDI/MDI-X

2x 10/100/1000Mbps RJ-45 Up-link

Power Input

100~240V/AC, 50~60 Hz, Internal Power Supply

Dimensions/weight

360x 200x 60mm / 1.5KG

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
