  • PoE-S8G
PoE-S8G

PoE-S8G

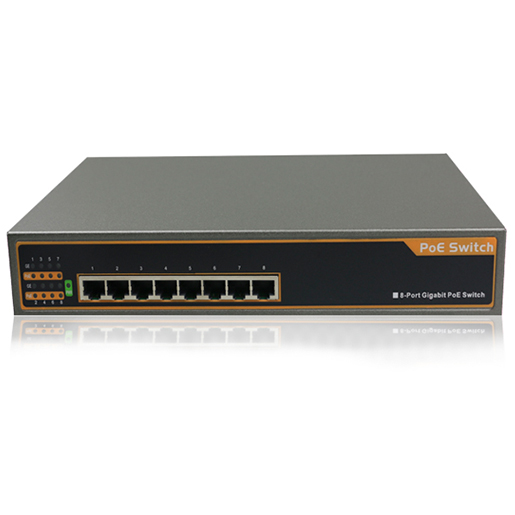

  • Product description: 8-Ports PoE 10/100/1000Mbps Ethernet Switch
  • INQUIRY

Product Details:

Model Number:

PoE-S8G

Ports:

8GE PoE

Min. Order Qty:

1 PCS

Trade Term

EX WORKS, FOB, CIF…

Products Status:

Make-to-Order/Stock

Delivery Time:

1-30 days

Certification:

CE, FCC, ROHS

Warranty

1 Year

Key Features:

- Compliant with IEEE 802.3af/at standard

- Supports Power over Ethernet on 8 ports of 10/100/1000Mbps

- Provides 130W (max) feeding power to 8 PDs: 15.4W for each port

- Support Auto-MDI/MDI-X

- Support Non-Blocking Data Forward

- Supports Auto-Negotiation and feature of store-and-forward

- LED indicators for PoE activity

- Safe: Low Power Devices Receive Only the Power They Need

- Safe and Reliable Power to WLAN Access Points

- Automatic Detection and Protection of Non–standard Ethernet

- Ethernet Terminals

- Compact Design Fits Easily in WLAN Access

- Plug-and-Play no configuration required

- Internal power supply

- Easy installation and maintenance

Technical Specification:


Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3ab 1000-BASE-T (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3at Power over Ethernet



PoE Performance

PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity

PoE over current protection PoE circuit sorting protection

PoE Power Output: Per Port 54V DC, Max. 30 watts

Power Consumption: 150 Watts(Max)

PoE Power Budget: 123 Watts

PoE Power Supply Type:1/2(+)3/6(-),Mode-A,End-Span

PoE port priority: support

Storage and forward: support

Switch Fabric: 16Gbps

MAC Address Table: 2K

Transmission Media

10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m)

100base TX: Category 5 and above unshielded twisted pair (≤ 100m)

1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)


LED Indicators

Per Port: PoE in use(Orange),Power: Green,

10/100M Link/Act(Green); 1000M  Link/Act ( Green)

Network Interface

8x 10/100/1000Mbps RJ-45;  (PoE 1~8 Ports)  Auto-MDI/MDI-X

Power Input

100~240V/AC, 50~60 Hz

Dimensions/weight

360x 200x 60 mm / 1.5KG

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certifications

CE/FCC/ROHS
