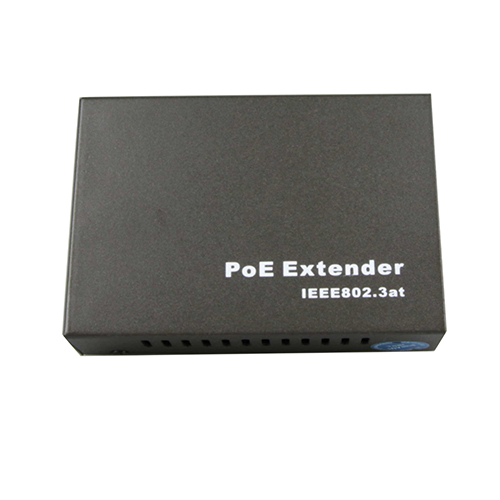

PoEX-3(1-2G)30W (IEEE802.3 at 30W 100/1000M)

Description:

Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 cable.

With Gigabit PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.

Gigabit PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation PoE Extender offers three Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is maintained PoE in connection PoE Switch, 12.36 or 45.78 powered support, support IEEE802.3af & at the power supply, PoE out for the supply terminal 2 Gigabit, PoE total power can reach 30W

Features:

Compatible with IEEE802.3af and IEEE802.3at

Extends the range of PoE and Ethernet an additional 100 meters

No additional power supply is required

Automatically detects and protects PoE equipment from being damaged by incorrect installation

Full-rate network throughout the whole extended distance

Wall-Mountable design

Easy plug-and-play installation
