PoE Injector-Active

PJ800G90W

Product description: Standard Single-Port PoE Injector IEEE802.3bt 90W 1000Mbps
INQUIRY

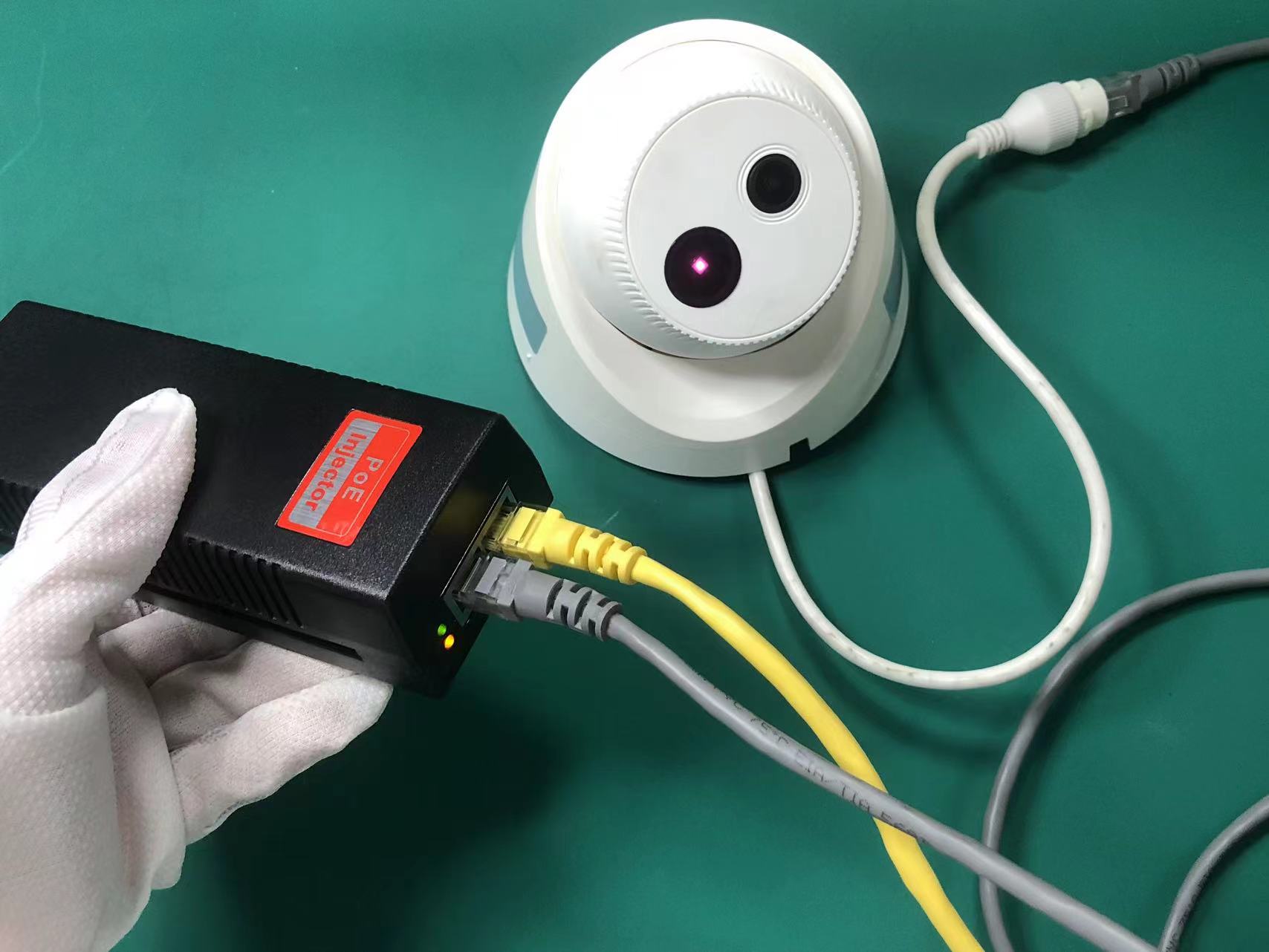

The PJ800G90W is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. It supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3bt PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore.

Product Details:

Model Number:	PJ800G90W	Ports:	1xPoE + 1xUplink
Products Status:	Make-to-Order/Stock	Delivery Time:	1-30 days
Certification:	CE, FCC, ROHS	Warranty	1 Year

Key Features:

-Up to 90W of Power on
-Safe on Low Power Devices Receive Only the Power They Need
-Safe and Reliable Power to WLAN Access Points
-Automatic Detection and Protection of Non–standard Ethernet Terminals
-Supports 10/100/1000Base-T LAN environment

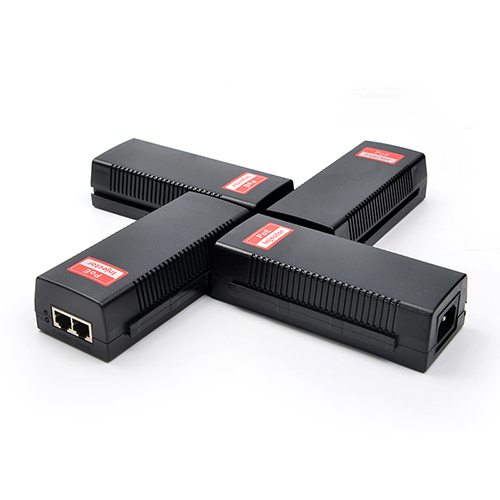

-Unique interlocking feature for easy installation

Technical Specification:

Standards	IEEE 802.3 10-BASE-T IEEE 802.3u 100-BASE-TX IEEE 802.3ab 1000-BASE-T (Fast Ethernet) IEEE 802.3bt/at/af

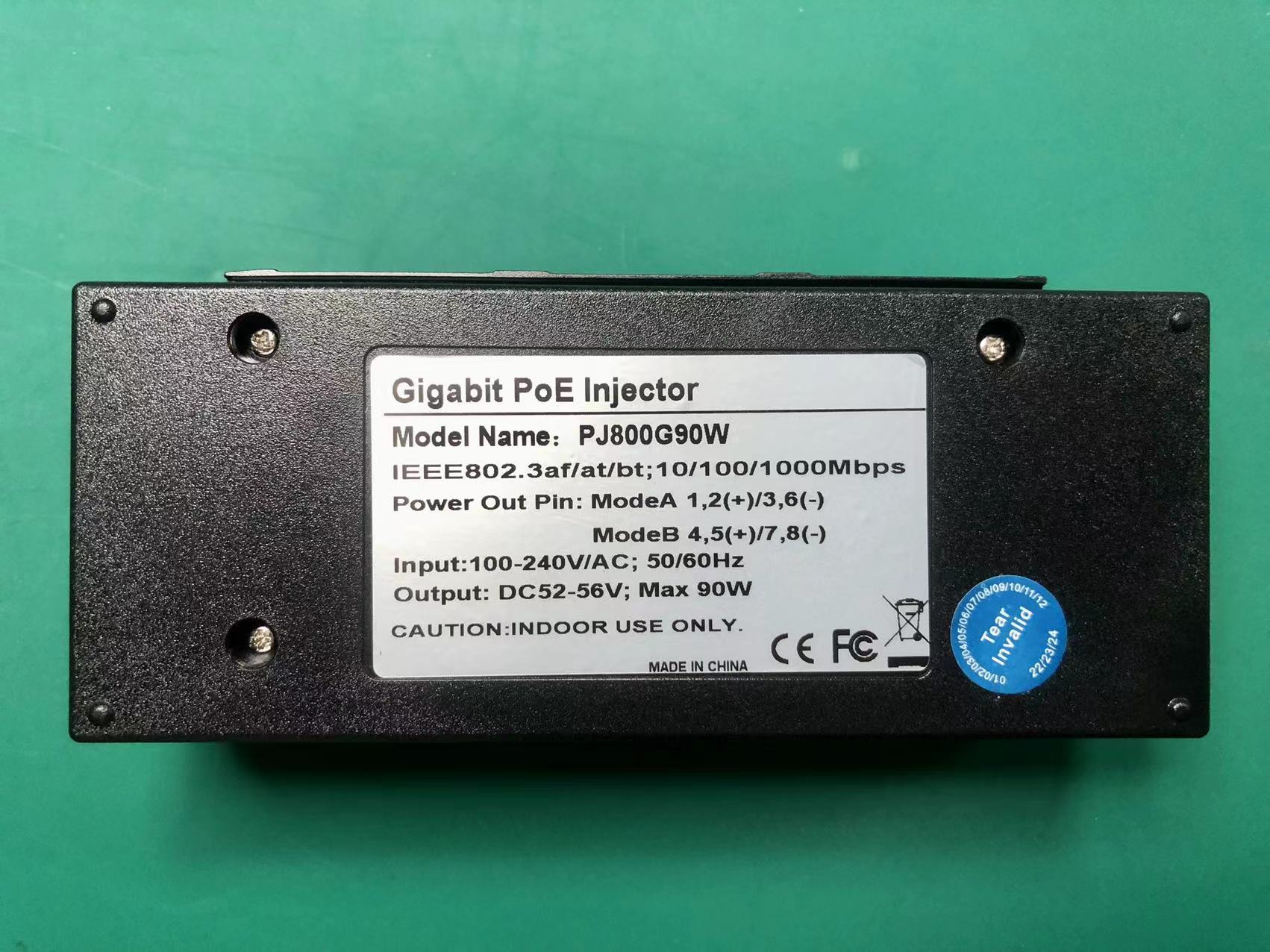

PoE Performance	Power Input: 100~240V/AC, 50~60 Hz, PoE Power Output: 54-56 VDC Power Pin Assignment: 1/2(+)3/6(-) & 4/5(+)7/8(-)
Transmission Media	10Base-T: 3, 4, 5 types of unshielded twisted pair (≤ 100m) 100base TX: Category 5 and above unshielded twisted pair (≤ 100m) 1000BASE-T: unshielded twisted pair of cat 5 and above (≤ 100m)
LED Indicators	Power/PoE Status
Network Interface	1PoE Port at 10/100/1000Mbps 1Uplink Port at 10/100/1000Mbps
Dimension/weight	3962.7145mm 500g
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certifications	CE/FCC/ROHS
